BLHeli 32bit controllers are specially used for Multi-copter/Multi-rotors. 32bit mcu are used, enable the controllers have faster and more smooth throttle response than standard controllers.
Main features:
- Excellent startup performance, great throttle linear and quick throttle response, excellent low-speed performance.
- Separate voltage regulator IC for MCU (Micro Controller Unit), high capability of anti-interference.
- Low-voltage protection, block-rotation protection and signal lose protection, etc. All these functions can effectively prolong ESC service life.
- Programmable by Trx or by a Maytech programming card (optional). Program-Card has a simple and visual surface to conveniently change parameters at any time anywhere.
- Safe start-up. The motor won’t be started no matter which position the throttle stick is on when battery connected.
- Motor rotating direction can be changed by exchanging two of three wires from ESC or setting by the Program-Card.
- Great ESCs equalization, all ESCs can respond to signals from the remote at the same time, bring smooth flying.
Specifications:

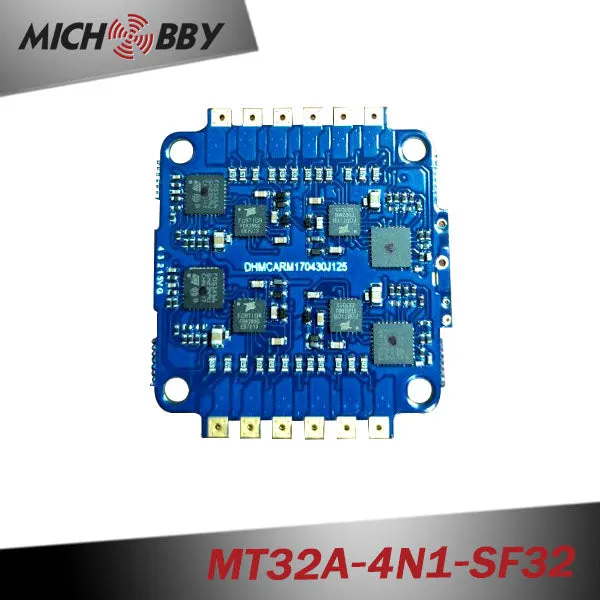

Model NO.: MT32A-4N1-SF32 for 4pcs motors
Firmware......................................... 32bit BLHeli_32 firmware
Cont.Current ................................... 32A
Burst Current ................................... 42A
BEC.................................................. SBEC:3A/5V
Lipo................................................... 2-4 cells
Net Weight ........................................ 13g
Size.................................................... 36*36mm (30.5mm mounting holes)
