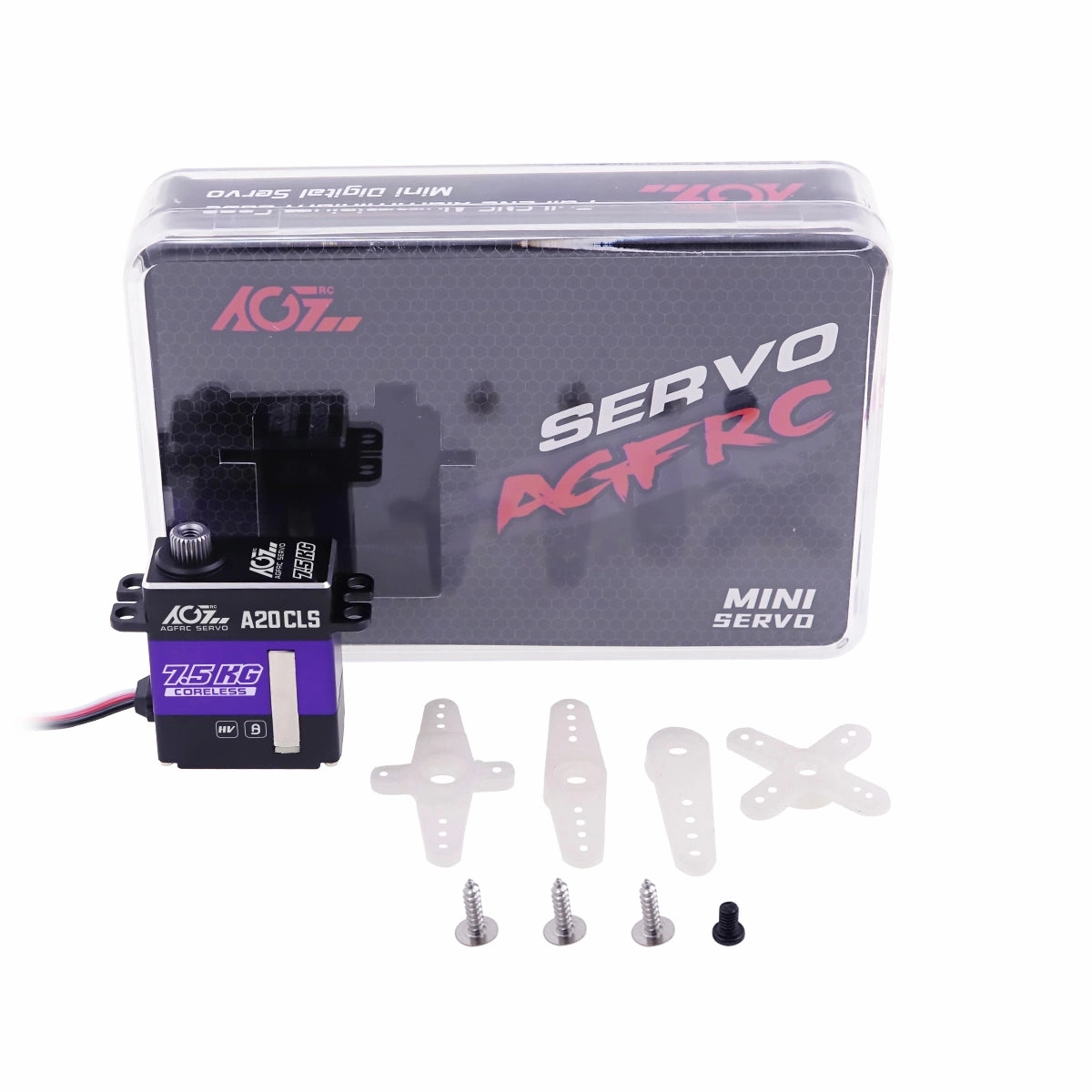

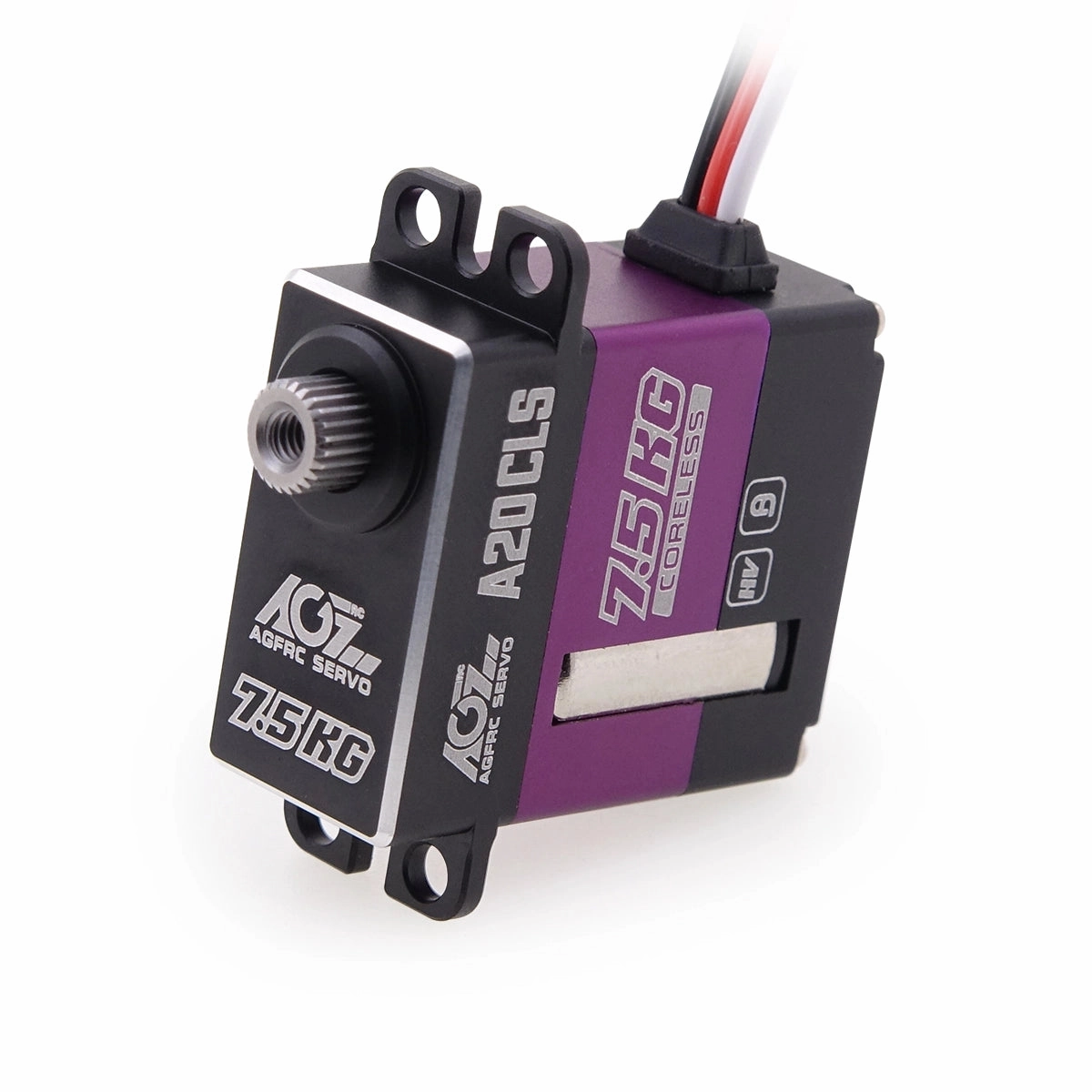

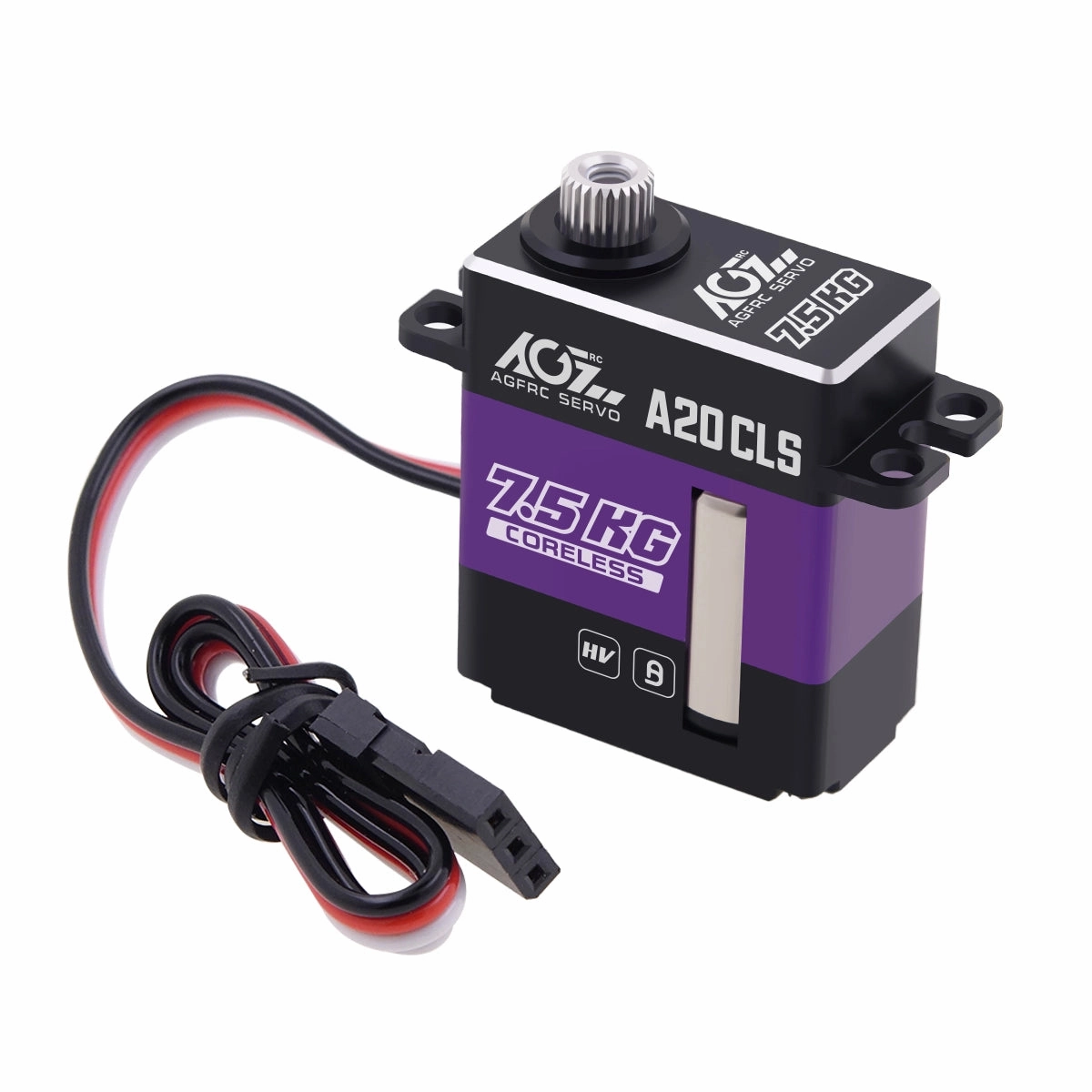

AGFrc 7.5kg 0.08sec High Speed High Voltage Digital Coreless Full Metal Gear CNC Case Programmable Micro Wing Servo for Airplane Helicopter (A20CLS)
AGFrc A20CLS is 7.5kg high torque and 0.08sec fast speed programmable digital mini servo. Coreless motor provide high efficiency working and keep it in a affordable price. Double ball bearings and metal gears allow for compactness cooperation with servo motor. Light weight and ultra small body make it suitable for more application like 1/24 scale cars and small scale helicopters.
Feature
High Performance Digital Micro Servo
High Precision Metal Gears
High Quality Coreless Motor
Dual Ball Bearing
Full CNC Aluminium Housing
Ideal for 1/24 Scale RC Monster Car, SCX10.3，SCX24, Airplane and 450 Class Helicopter Tail and Swashplate etc.
Specification
A20CLS
Operating Voltage: 4.8-8.4V
Operating speed: 0.11sec/60°@ 6.0V
Operating speed: 0.09sec/60°@ 7.4V
Operating speed: 0.08sec/60°@ 8.4V
Stall Torque: 5.8 kg-cm (80 oz-in) @ 6.0V
Stall Torque: 6.8 kg-cm (95 oz-in) @ 7.4V
Stall Torque: 7.5 kg-cm (104oz-in) @ 8.4V
Gear: Steel Copper
Motor：Coreless
Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in)

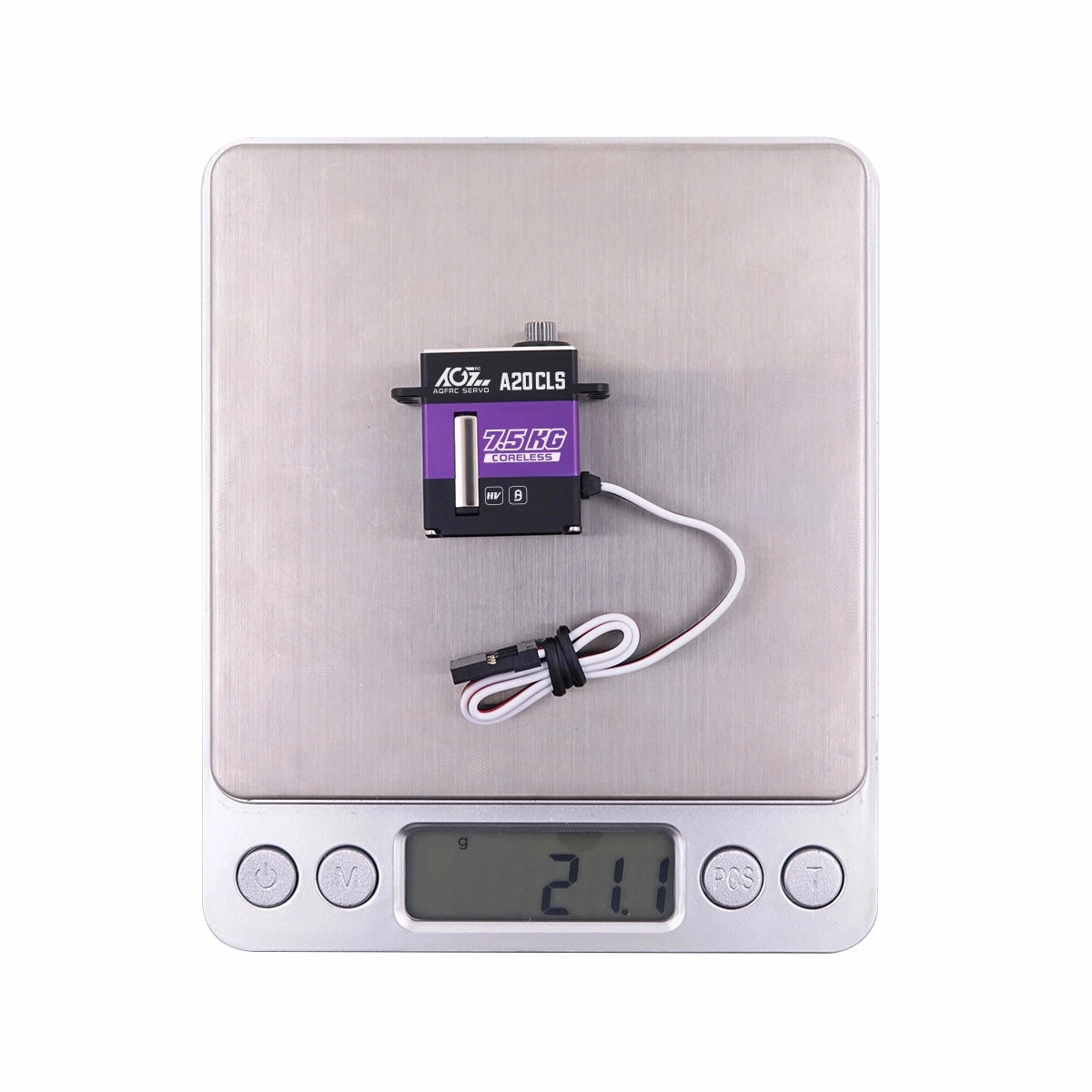

Weight: 21g
Connector Wire: TYU 190 mm 26AWG
- Brand: AGFRC
- Iterm Name: A20CLS
- Signal Mode: Digital
- Control System: Pulse width modulation control
- Refresh Rate: 333Hz
- Neutral Position: 1520uS
- Dead band: 2 uSec
- Operating Voltage: 4.8V~8.4V
- Operating Travel: 180°±10°
- Mechanical Angle: No Limit
- Signal Range: 500 to 2500 uSec
- Angle Sensor: Potentiometer
- Temperature: -15C°~ 70C°
- Motor Type: Coreless
- Motor Drive: FET Drive
- Programmable: Yes
- Horn Gear Spline: 25T-φ4.94mm
- Bearing: Double Ball Bearings
- Bearing Material: Metal
- Gear Material: Strength Steel
- Case Material: AL6061T6
- Certification: CE,FCC,RoHs
- Product Size: 23*12*27.5mm(0.91*0.47*1.08 inch)
- Wire Guage: JR 180mm / 26AWG
- Net Weight: 20g(0.71oz)
