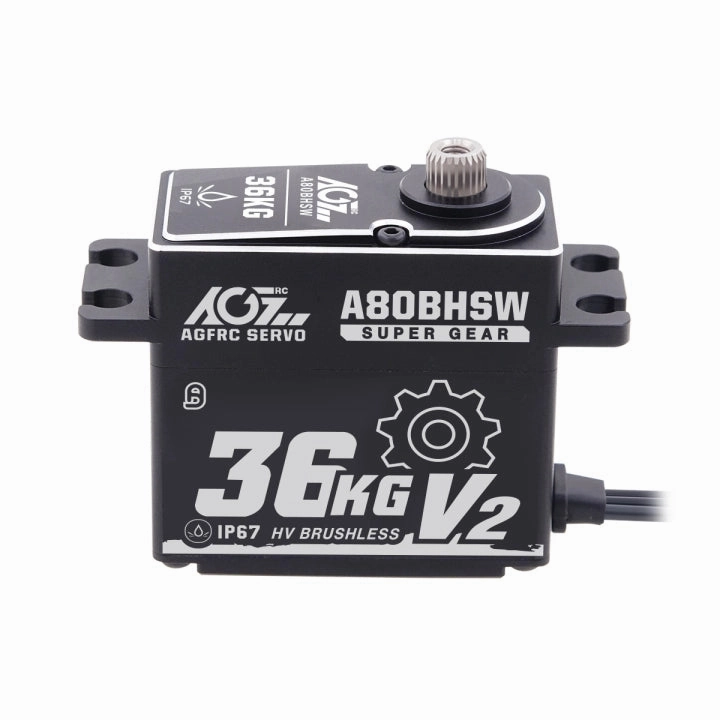

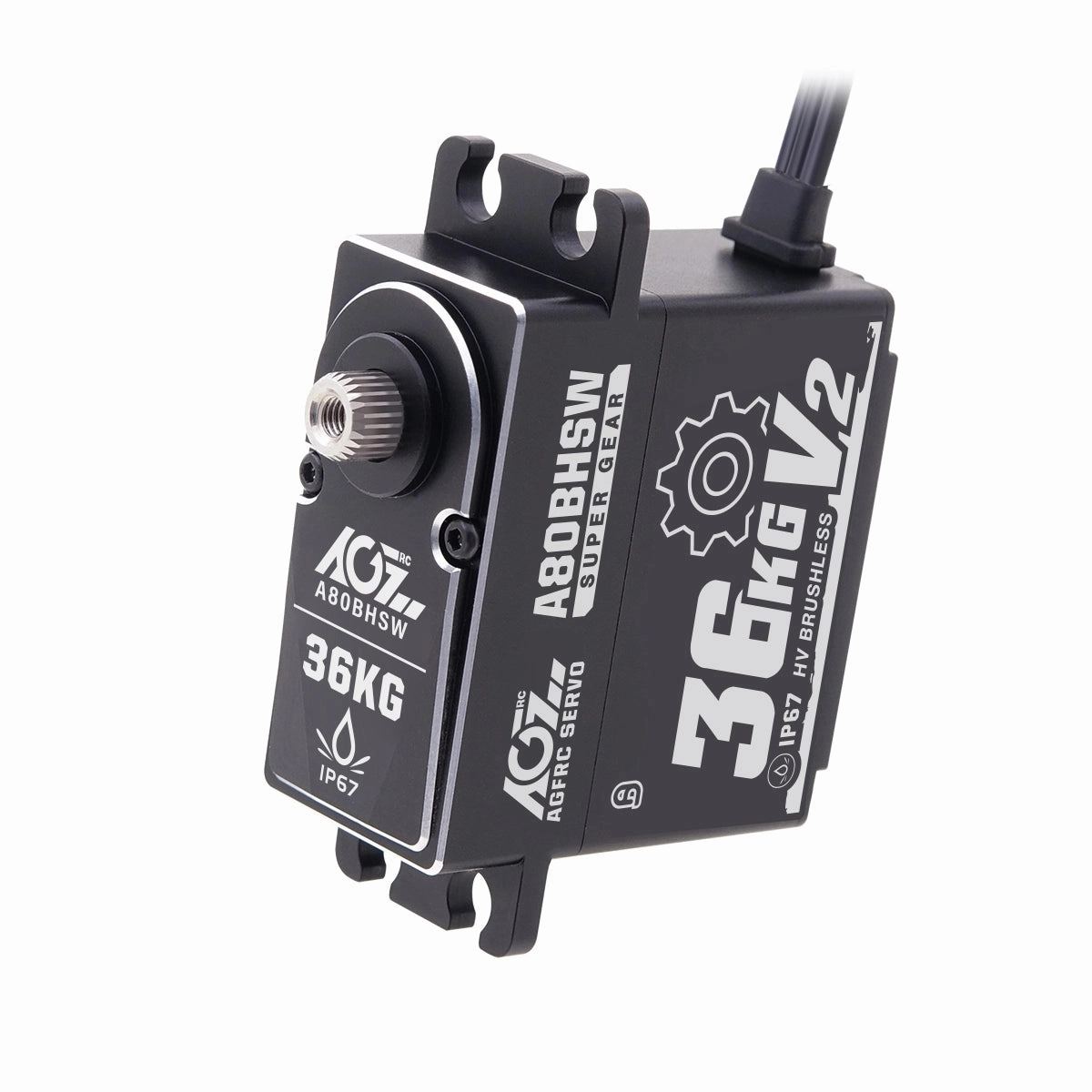

The A80BHSW V2 is fully upgrade inside structure to make it much more stronger and reliable for 1/10 scale models. Updated with latest designed laser engraving pattern for a new look. Enhance pin shaft and upgrade gear material, smooth three ball bearings and high-quality long-life brushless motor which make it trustworthy when you climping in the hill or throught the rock.
High voltage compatibility of up to 8.4V, not only with fast response speed, but also has a good heat dissipation effect. Effectively solve the problem of heating of the servo system under long-time work. High accuracy digital magnetic position encoding, which feature waterproof function up to IP67 grade. It can be used even in the environment of muddy roads, streams, breeze and drizzle. Even if it snows, you can take it and make a snowman with your model. If you prefer custom parameter programming, it can also meet your requirements. AGFRC always listens to the requirements and suggestions of the public and brings more high-quality products to everyone.
Feature
High Performance Digital Standard Servo
Fully Aluminum Housing and Structure
Enhanced Steel Gears and Pin Shaft
High Strength Three Ball Bearings
High Efficiency Bruhless Motor
Built-in Magnetic Sensor
Fully Waterproof IP67 Rated
USB Programmable Circuit

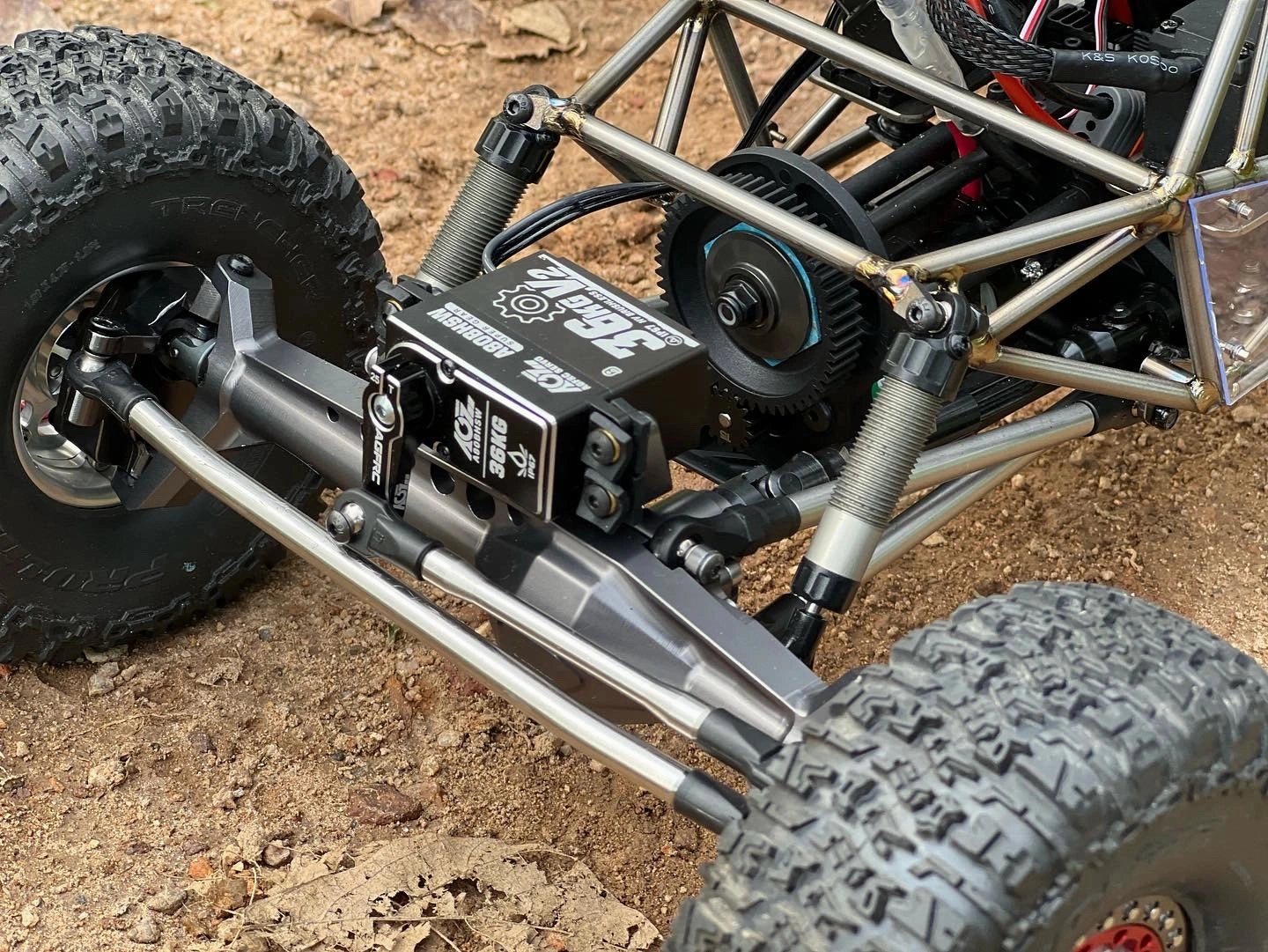

Ideal for 1/10, On Road, TRX6, Arrma Mojave EXB-Roller Desert Truck, Off Road, Monster Truck, Airplane, Helicopter, Robot and Engine etc.
Stall Torque
- 23 kg-cm (319 oz-in) @ 4.8V
- 28 kg-cm (389 oz-in) @ 6.0V
- 33 kg-cm (458 oz-in) @ 7.4V
- 36 kg-cm (500 oz-in) @ 8.4V
Operating Speed
- 0.120sec/60° @ 4.8V
- 0.110sec/60° @ 6.0V
- 0.083sec/60° @ 7.4V
- 0.071sec/60° @ 8.4V
- Control System: Pulse Width Modulation Control (PWM)
- Refresh Rate: 333Hz
- Neutral Position: 1520uS
- Signal Mode: Digital
- Dead band: 2 uSec
- Operating Voltage: 4.8V ~ 8.4V
- Operating Travel: 180°±10°
- Signal Range: 500 to 2500 uSec
- Angle Sensor: Magnet Angle Sensor
- Operating Temperature: -15C°~ 70C°
- Mechanical Angle: No Limit
- Waterproof Level: IP67
- Motor Type: Brushless
- Motor Drive: FET Drive
- Horn Gear Spline: 25T-φ5.92mm
- Programmable: Yes
- Bearing: Three Ball Bearings
- Bearing Material: Metal
- Gear Material: Strength Steel
- Case Material: Aluminium AL6061T6
- Certification: CE,FCC,RoHs

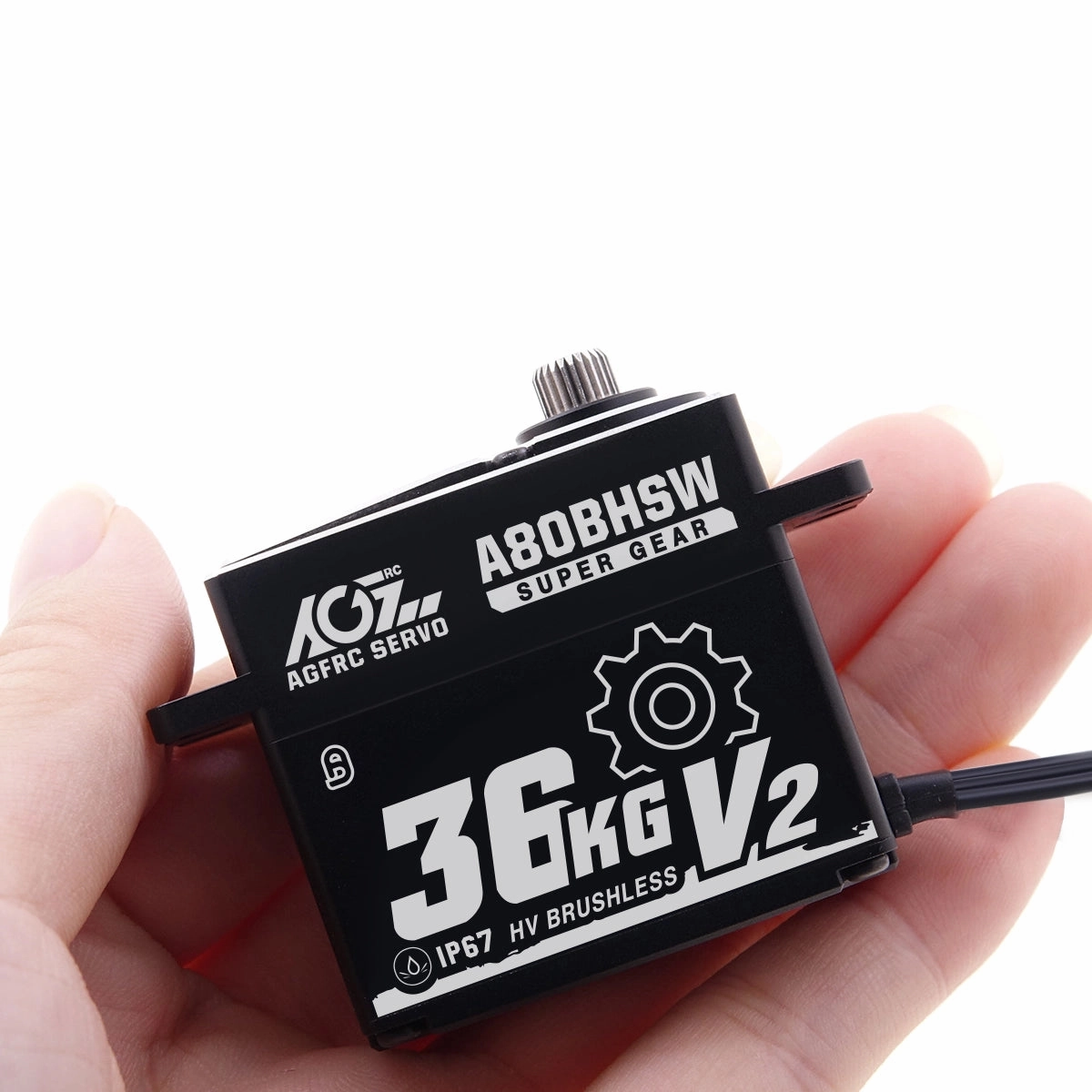

- Product Size: 40*20*37.2mm(1.57*0.79*1.46in)
- Wire Guage: TYU 300mm / 22AWG

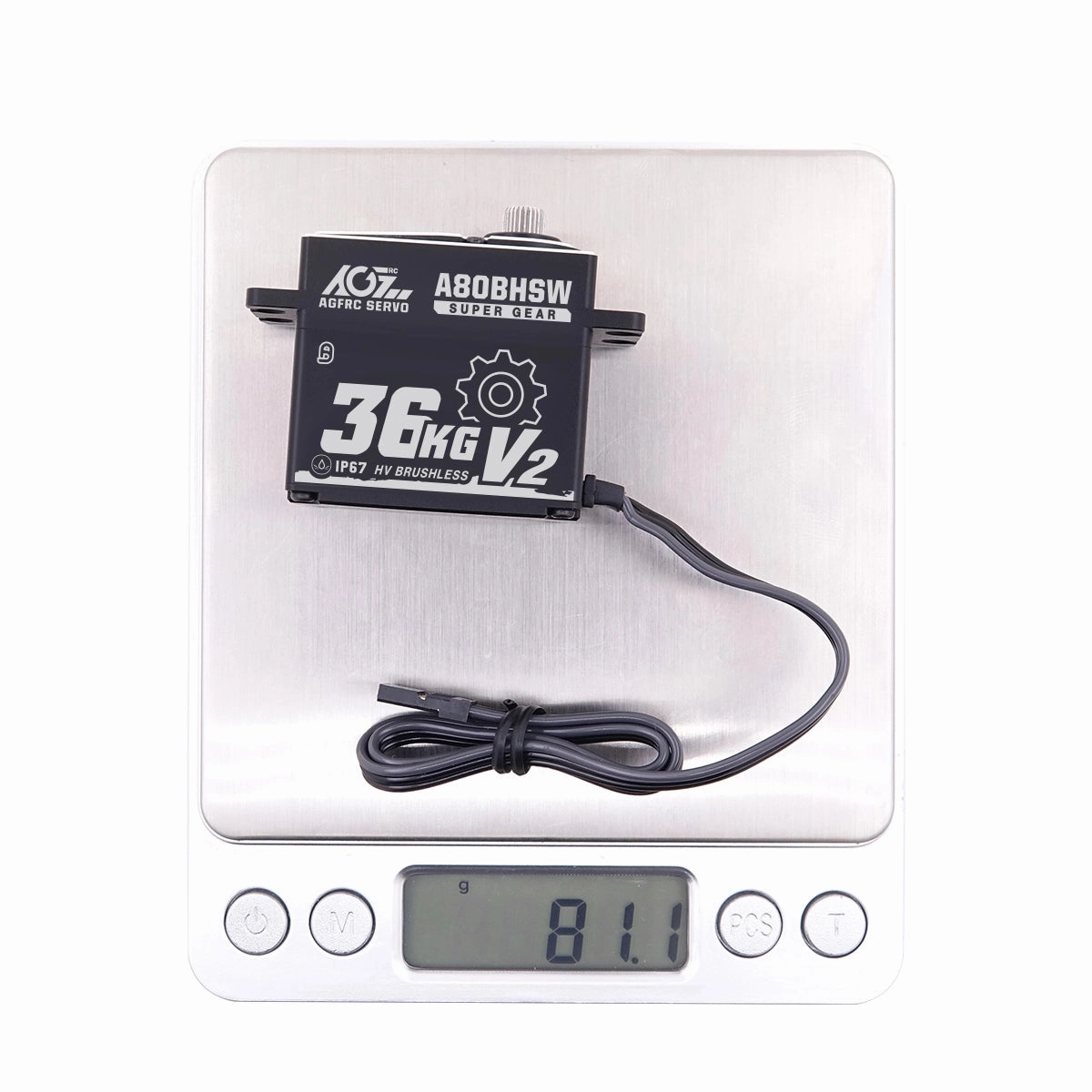

- Net Weight: 79g(2.79oz)
