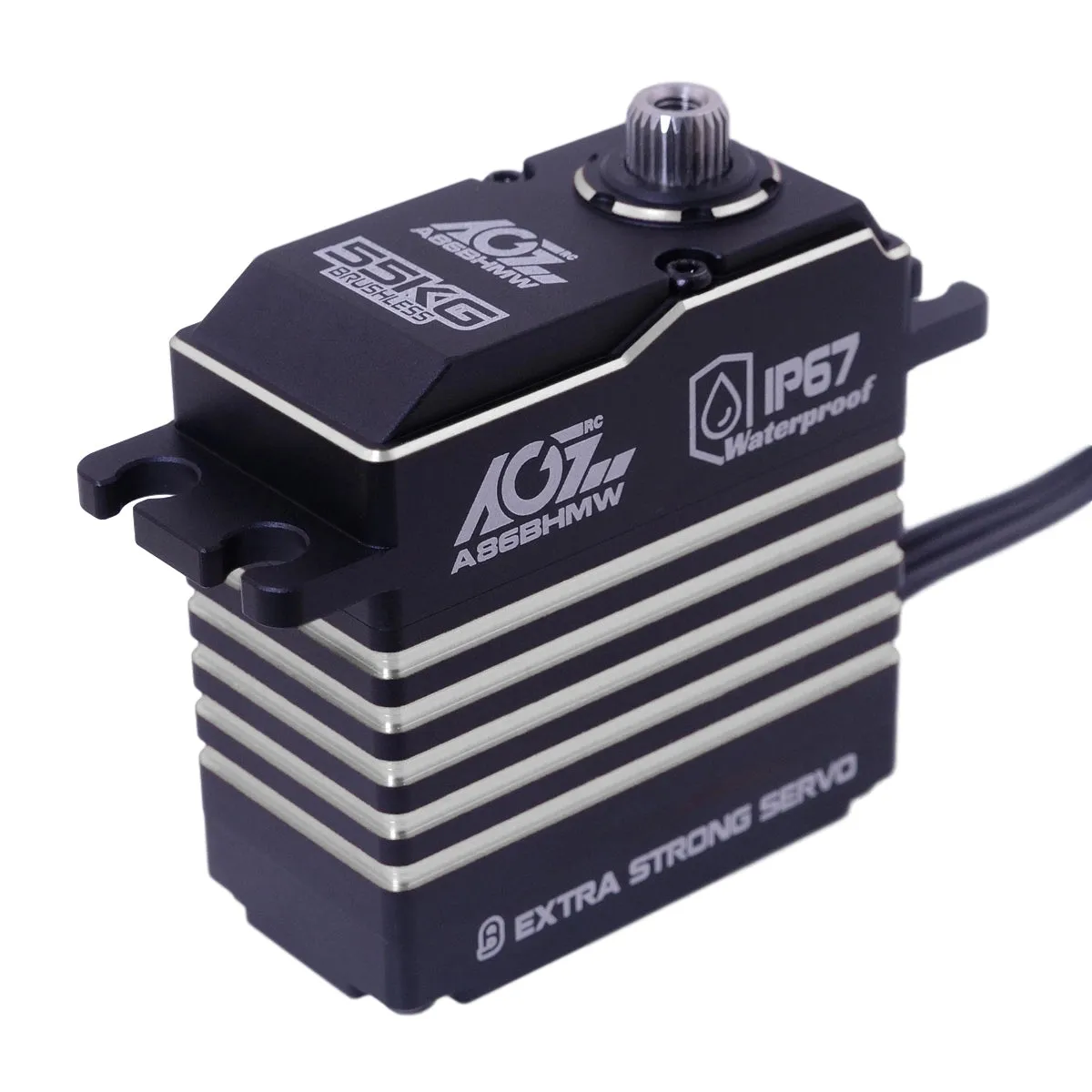

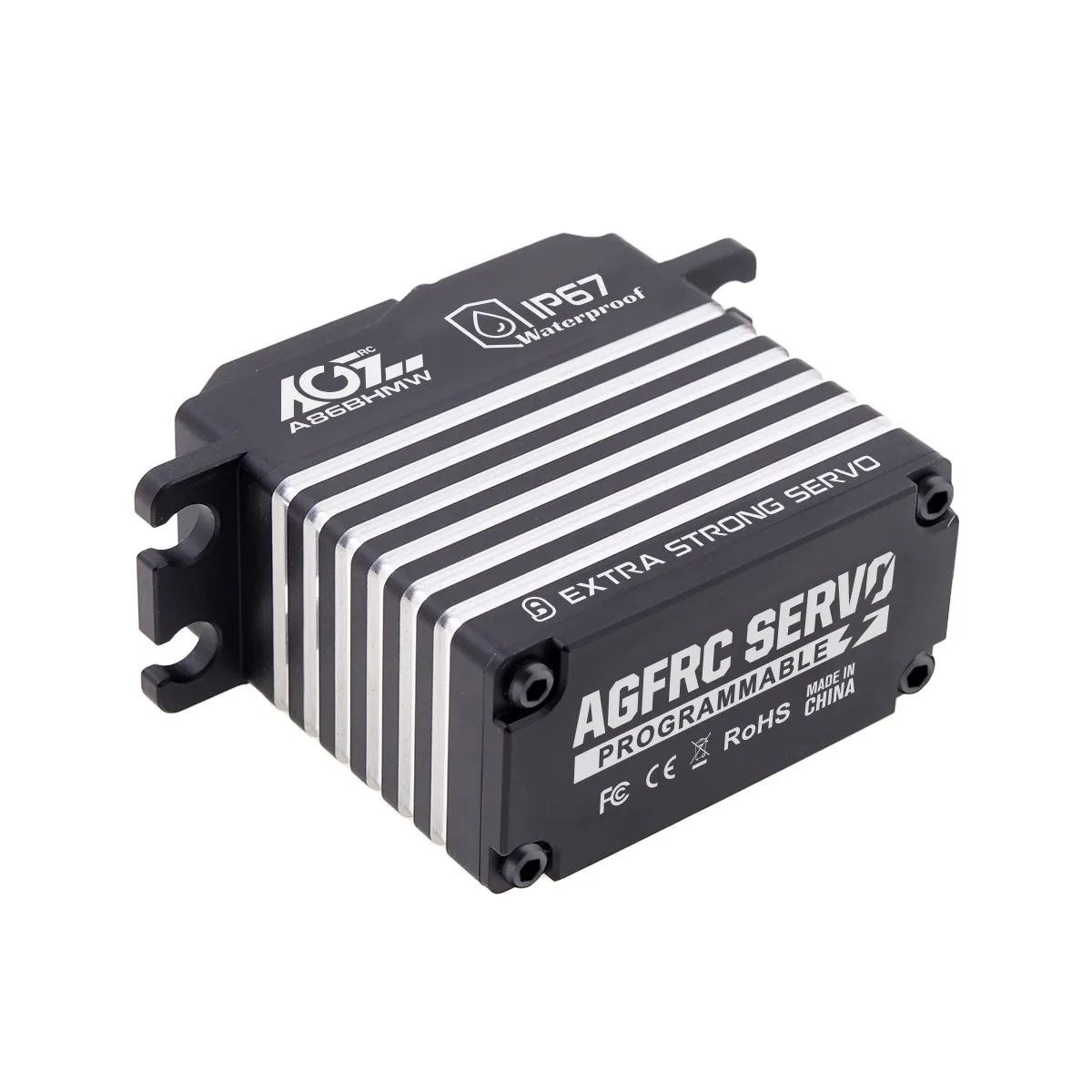

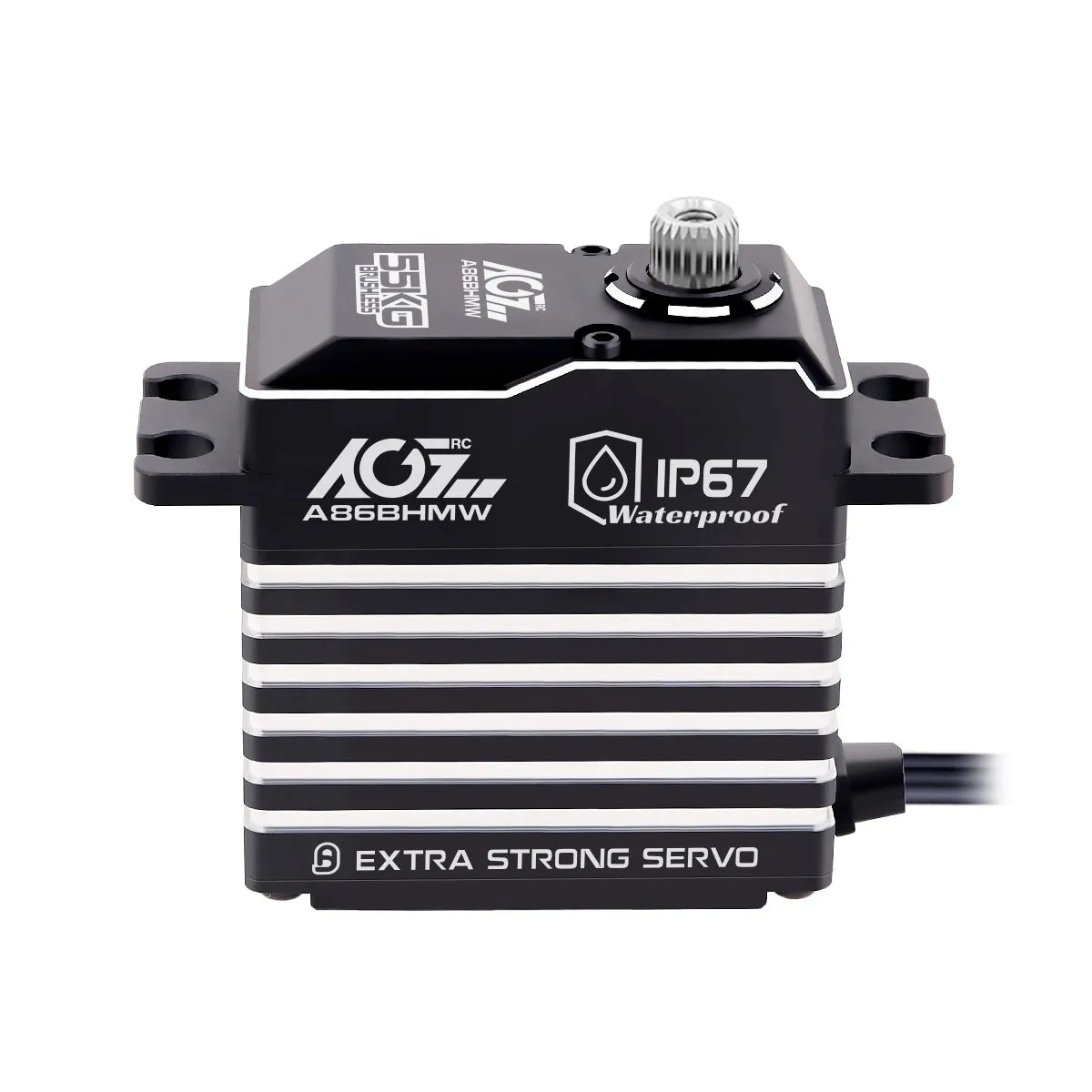

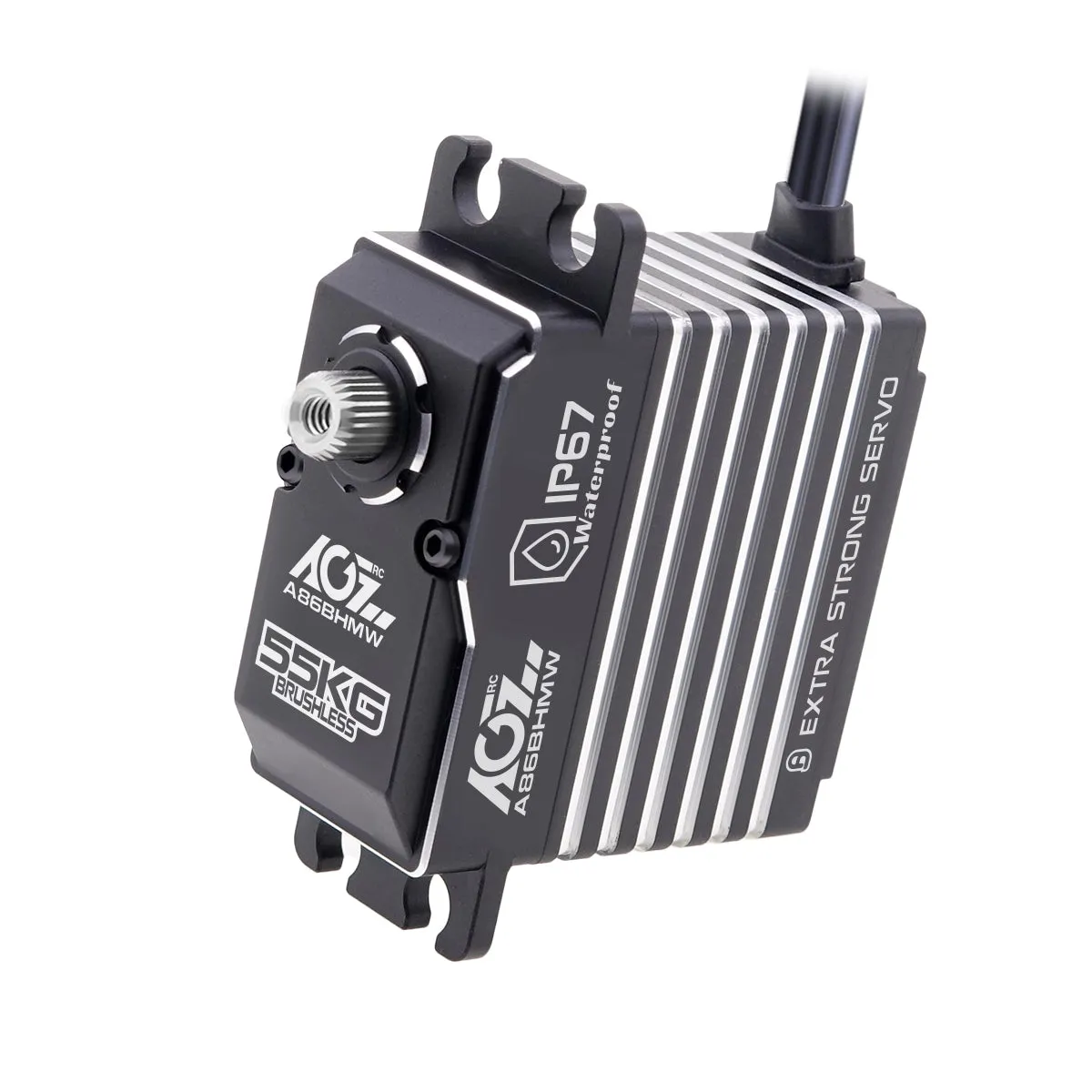

This is the AGFRC A86BHMW High Torque Waterproof Programmable Metal Gear Digital RC Servo. Combines leading edge technology with patent metal gears. Super light-weight, which net weight is only 86 gram. Brushless motor provides high torque and speed, incredible efficiency, and high precision magnetic sensor for low power consumption. Metal gears and three ball bearings ensure long life and durability. The full CNC aluminum case design not only looks good but also allows for cooler and smoother operating temps.

A86BHMW steering servo adopts IP67 level waterproof design which can work within 1 meter of water. Our servos are totally green from materials to production, these servos are Ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.

Features

• Programmable by the AGF-SPv2 servo programmer (Not Include) to change the torque, speed, angle, etc.

• The whole case is made of Aluminium, and it adopts AGFRC patented strengthen stainless steel gear and strengthen high chrome steel shaft.

• Unique groove surface design for fast heat dissipation of waterproof servo, 55kg high torque, strong compatibility and sensitive response, etc.

• High efficiency brushless motor

• IP67 waterproof design and waterproof rubber seals screws.


Applications

• AGFRC monster torque servo can be common use in RC climbing cars, 1:8/1:10 Buggy, RC boat, helicopter,bots, mechanical arms, and others RC model.
• Good choice for the RC model enthusiasts who love DIY, and university professor or student who are interested in developing software for robot parts.

Stall Torque

Operating Speed

0.175sec/60° @ 4.8V
0.142sec/60° @ 6.0V
0.125sec/60° @ 7.4V
0.110sec/60° @ 8.4V

Color: Black

Signal Mode: Digital

Control System: PWM, 1520uS/333hz

Dead band: 2 uSec

Operating Voltage: 4.8V ~ 8.4V

Operating Travel: 180°±10°

Signal Range: 500 to 2500 uSec

Angle Sensor: Magnet Sensor

Temperature: -15C°~ 70C°

Mechanical Angle: No Limit

Motor Type: Brushless Motor

Motor Drive: FET Drive

Horn Gear Spline: 25T-φ5.92mm

Programmable: Yes

Waterproof Level: IP67

Bearing: Three Ball Bearings

Bearing Material: Metal

Gear Material: Strength Steel

Case Material: AL6061T6

Certification: CE,FCC,RoHs

Wire Guage: TYU 300mm / 22AWG

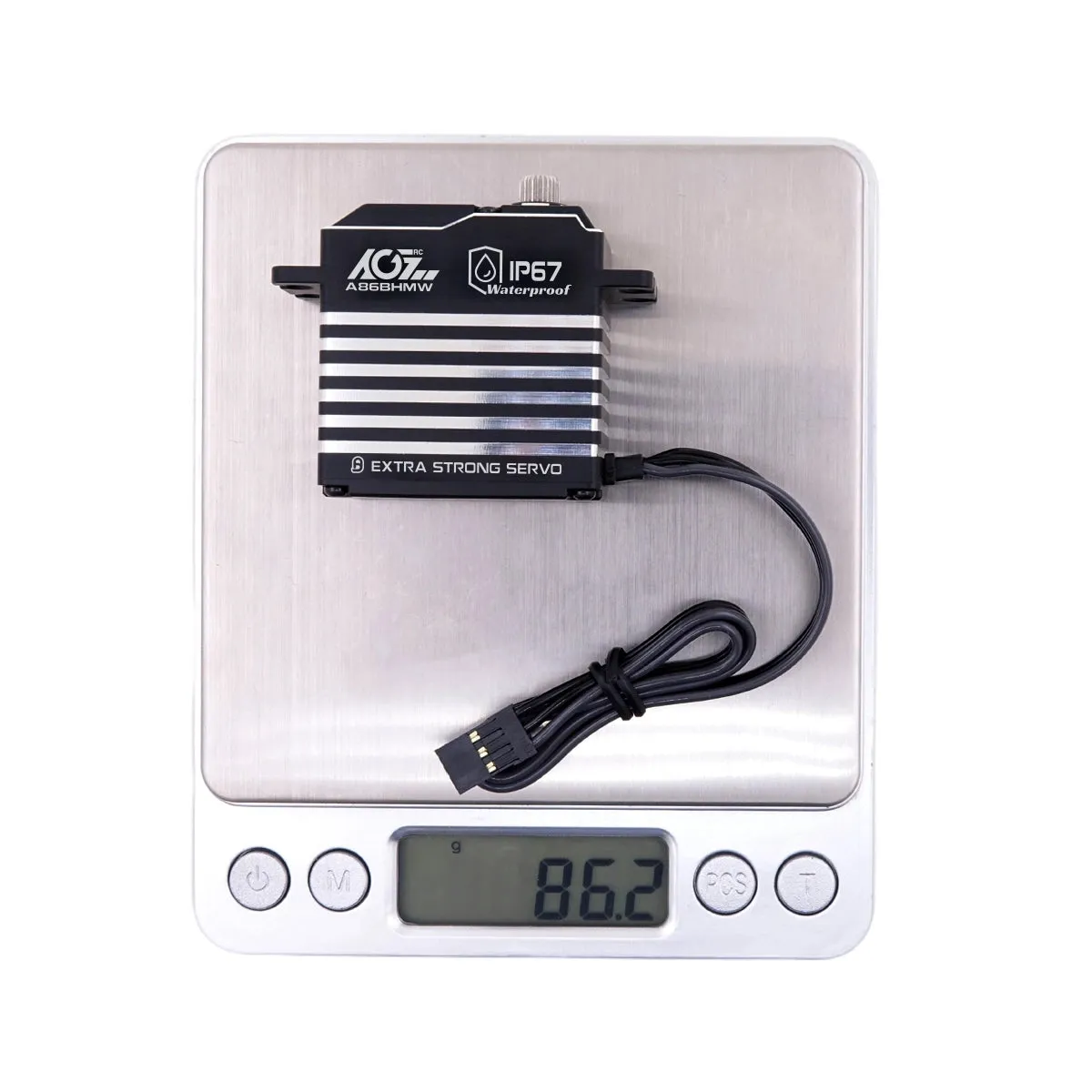

Net Weight: 88.5g(3.12oz)

Product Size: 40*20*41.5mm(1.57*0.79*1.63in)
