Note：

Mode 1-Right-hand throttle

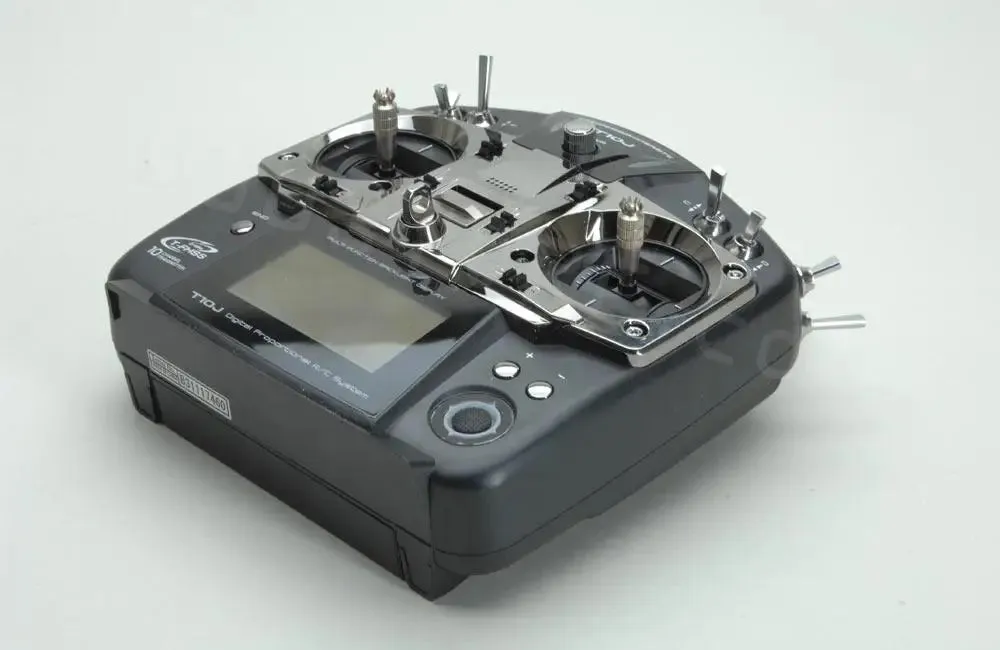

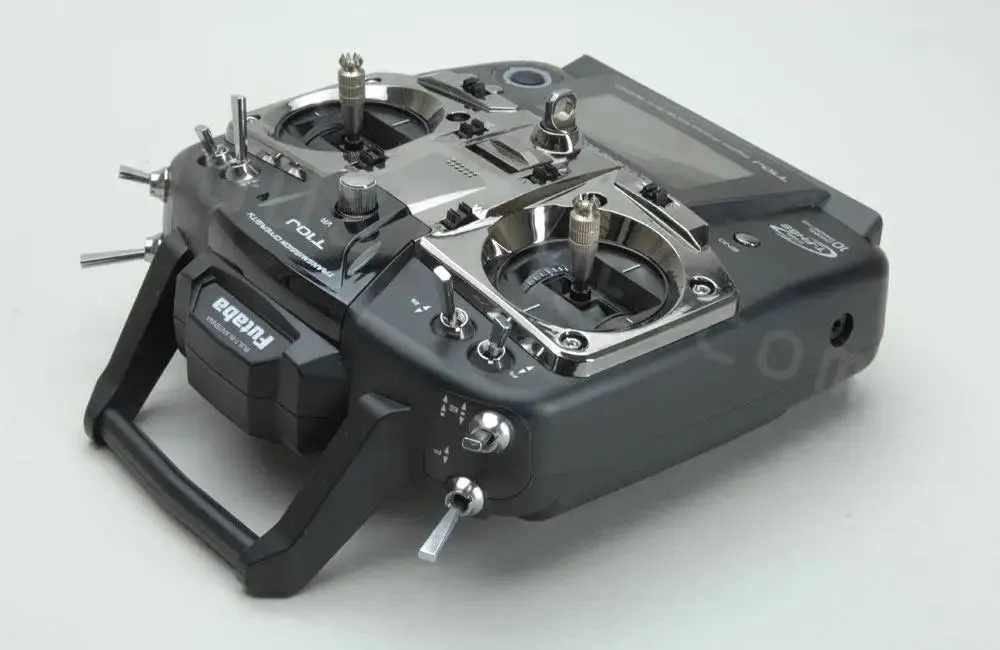

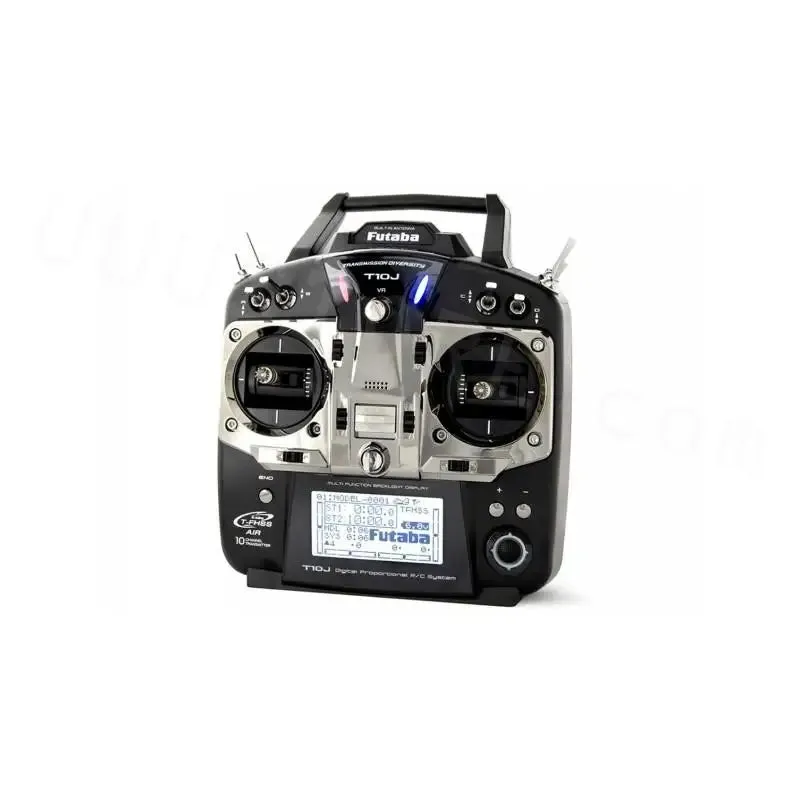

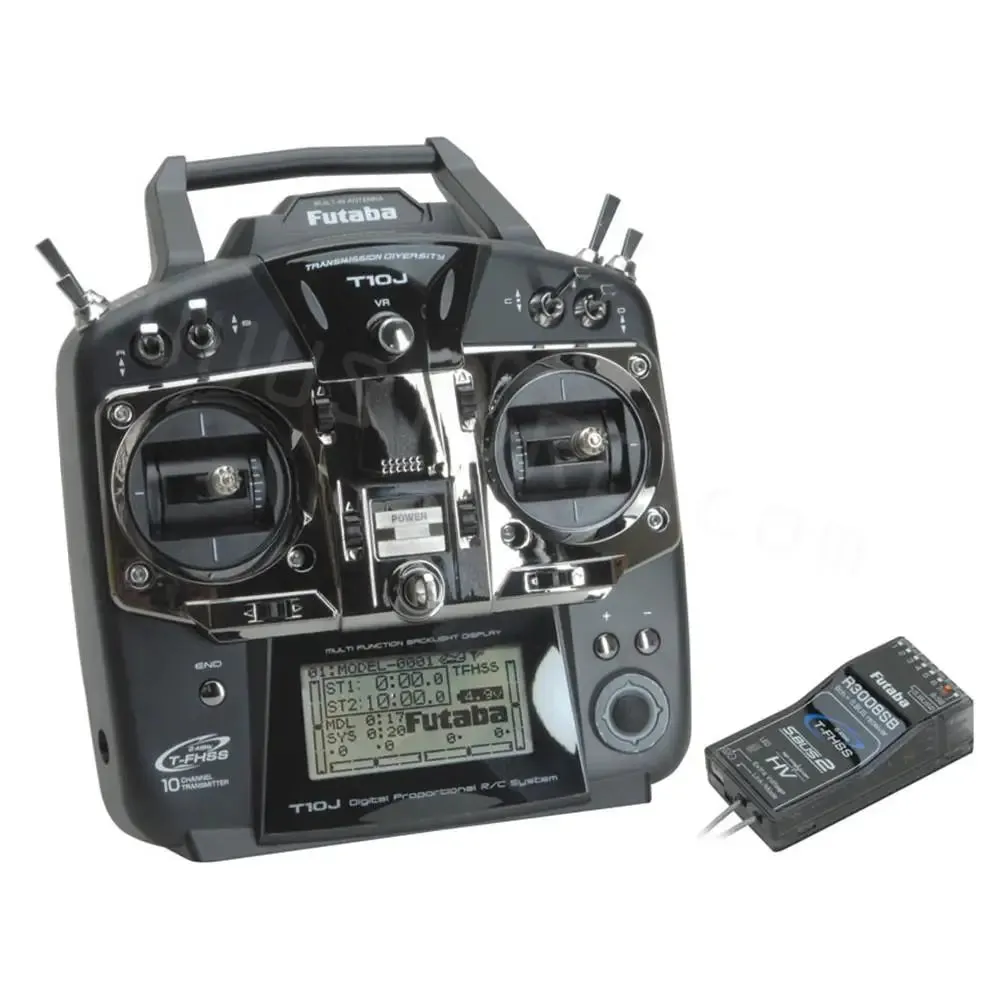

This is the Futaba 10JH 2.4 GHz S/FHSS Radio System with an included R3008SB Receiver. The 10JH helicopter system features a non-ratcheted throttle stick and will automatically default to helicopter settings with mode 2 stick functions when powered up.

The Futaba 10J is packed with features. 10 channels, telemetry, full programmability and simple updates. The telemetry data is easily viewed on the backlit LCD screen and can be heard audibly through headphones. Three buttons and a jog dial make it exceptionally easy to program, and functions can be assigned to a multitude sticks, switches, knobs and levers. Plus, it's light weight, easy to handle and equipped with an astonishing 30 model memory. All those features and more are included in a radio that's also the first to have multi-rotor helicopter programming.

Even with all its features, the Futaba 10J is still the most inexpensive telemetry enabled radio system on the planet. It's priced right for a first time radio, but packed with so many features pros will love it as well. It's perfect for a whole host of applications with Airplane, helicopter, glider and multi-rotor menus. Updating is simple, so your transmitter will never be out of date*. So when you're ready for a radio that can fly anything, comes packed with features and includes a powerful telemetry-enabled receiver, pick up the Futaba 10J. You'll be glad you did.

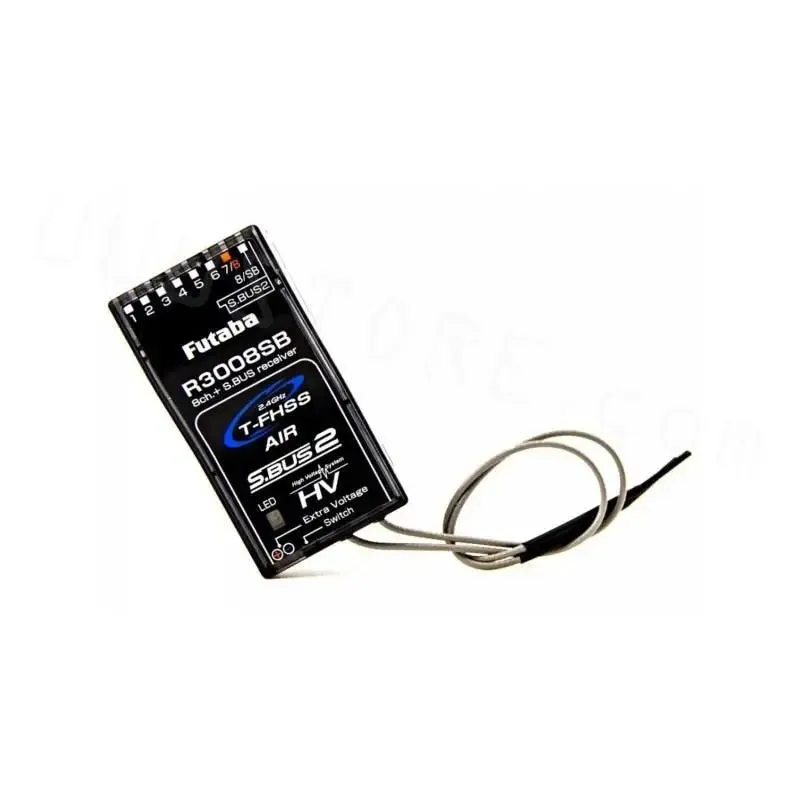

R3008SB Receiver
The R3008SB is a T-FHSS telemetry-capable receiver that features S.Bus and S.Bus2 compatibility, with 8 conventional ports. The receiver also features an external battery voltage connector for the CA-RVIN-700 External Voltage Cable (FUTM5551).

System Features:

• Futaba T-FHSS, S-FHSS 2.4GHz security
• Airplane, heli, glider and multi-rotor software
• 30-model memory
• S.Bus capable T-FHSS receiver
• Telemetry
• Synthesized voice for telemetry data
• Vibration alerts for alarm conditions and low battery
• User-updatable software (*requires optional CIU-2 interface)
• Wireless data transfer among 10J transmitters
• Built-in S.Bus programming link for S.Bus servos
• 10-character model and user naming
• Large (128 x 64 dot) backlit LCD display
• 10 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)
• Built-in diversity antenna
• Jog dial and 3 buttons for fast, easy programming
• Sub-trim and fail-safe (all channels)
• Servo reversing, endpoint adjustment, digital trims, dual rates/exponential* & ATL
• Trim step adjustability
• Trainer system
• Throttle cut
• 2 count-up/-down timers integrated timer
• Model timer
• Range check mode
• Servo cycle w/bar graph displays
• Assignable switch/lever/functions (Ch. 5-10)

Menu's:

• Helicopter:
  • 6 programmable mixes
  • 10 factory-defined mixes
  • 8 swash plate types
  • 5 flight conditions w/delay
  • Throttle curve (4 curves, 5 points)
  • Pitch curve (5 curves, 5 points)
  • Throttle hold & delay
  • Swash AFR
  • Electronic swash ring
• Airplane:
  • 6 programmable mixes
  • 9 factory-defined mixes
  • Flaperons with differential rate
  • Flap trim
  • Differential ailerons
  • Gyro sensitivity
  • 5-point throttle & pitch curves
  • Throttle delay
  • Idle down
• Glider:
  • 6 programmable mixes, plus:
  • 3 factory-defined mixes
  • 5 wing types
  • Gyro sensitivity
  • Motor menu
  • 2 flight conditions
• Multi-Rotor:
  • 6 programmable mixes, plus:
  • Gyro sensitivity/mixing
  • Center stick alarm

Specifications:

• Transmitter:
  • Type: 2-stick, 10 channel, T-FHSS Air-2.4GHz system
  • Transmitter Frequency: 2.4GHz band
  • System: T-FHSS Air, S-FHSS, switchable
  • Power Supply: 6.0V dry battery
• R3008SB Receiver:
  • Type: T-FHSS Air-2.4GHz, dual antenna diversity, S.BUS system
  • Power Requirement: 4.8-7.4V battery or regulated output from ESC*
  • Size: 0.98x1.86x0.56" (24.9x47.3x14.3mm)
  • Weight: 0.36oz (10.1g)
  • Battery F/S Voltage: Sets up with transmitter

*NOTE: When using ESC's make sure the regulated output capacity meets usage application

Includes:

• Futaba 10JH 2.4GHz 10-Channel S/FHSS Transmitter
• R3008SB Receiver(optional)
• FUTL7685 Switch Harness
• Instruction Manual
