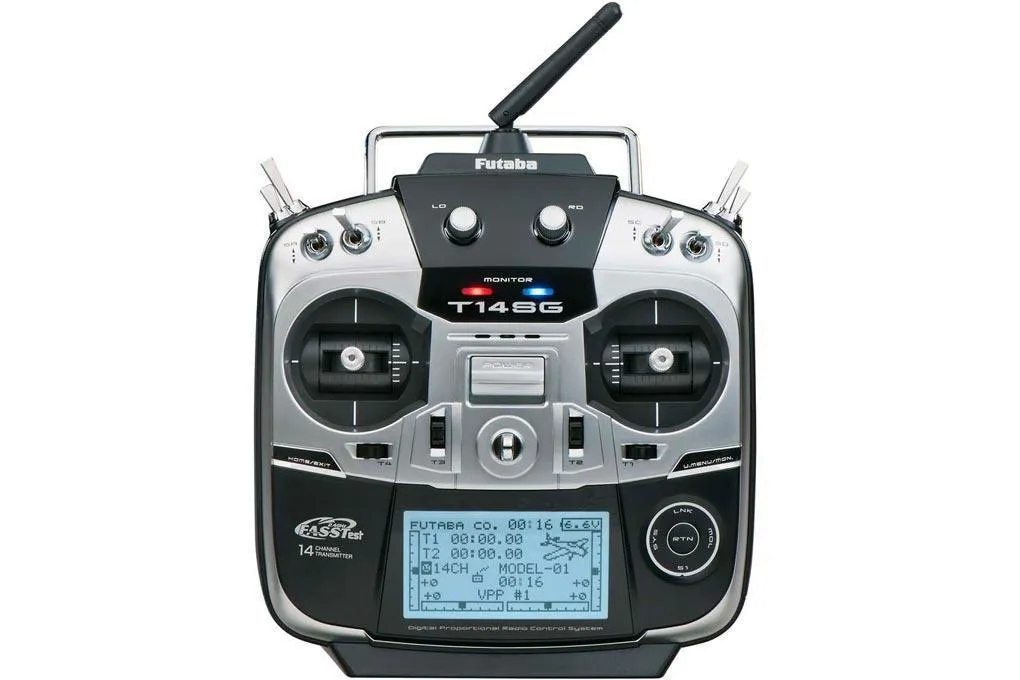

Futaba 14SGA Air Computer Radio on Mode 2 - FASST, FASSTest, S-FHSS 2.4GHz Radio with R7008SB 8 channel Rx - 14 channel FUTK9410

The Futaba 14SG radio system picks up the the Futaba 8FG Super leaves off. What are the differences? The 14SG is compatible with FASST, FASSTest, and S-FHSS receivers so you can use almost any air reciever Futaba makes. The 14SG also has telemetry capability while the 8FG does not. The 14SG also has minor enhancements like the ability to change servo speeds. Fuaba is known for building the highest quality and most reliable radio systems on the market. The Futaba 14SG is simply one of the best radios available. The radio includes a rechargeable 1800mAh NiMh battery pack and charger. Airplane, heli, and glider setup and programming menus are included. If low latency and ultimately reliability are required, this is one of the best radios on the market.

Features:

• Channels: 12 proportional, 2 switched
• Compatible with FASSTest, FASST and S-FHSS protocols

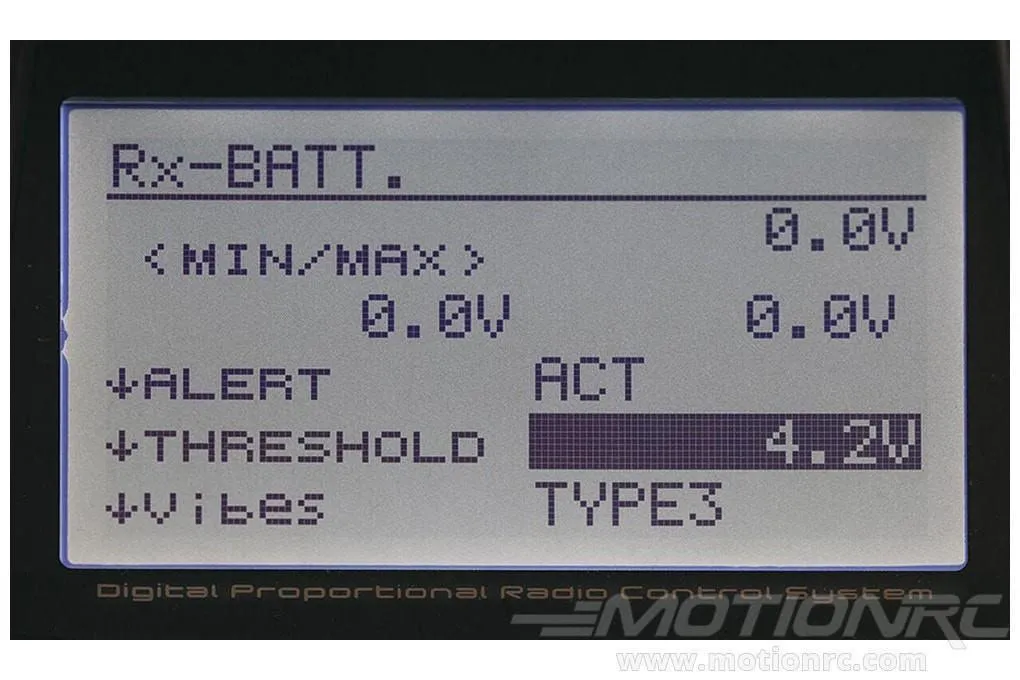

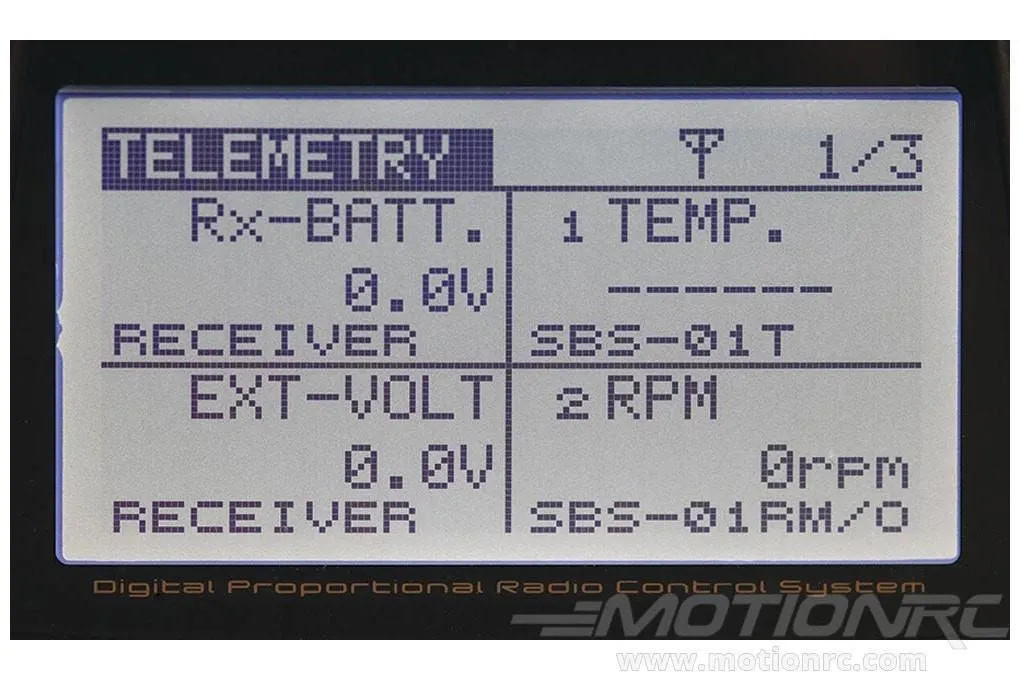

• FASSTest telemetry – compatible with Futaba telemetry sensors (sold separately)
• Free user-updatable software
• 30-model memory
• 10-character user naming
• 10-character model naming
• Airplane, helicopter and glider programming

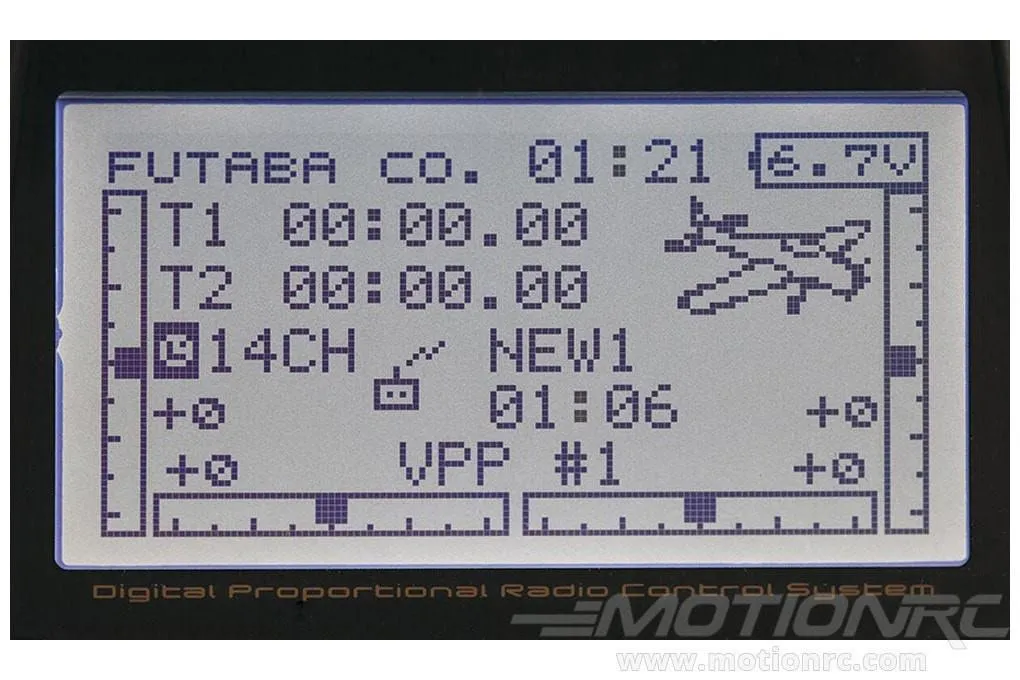

• Large, 1.75” x 3” backlit LCD screen with 128 x 64 resolution
• SensorTouch™ programming

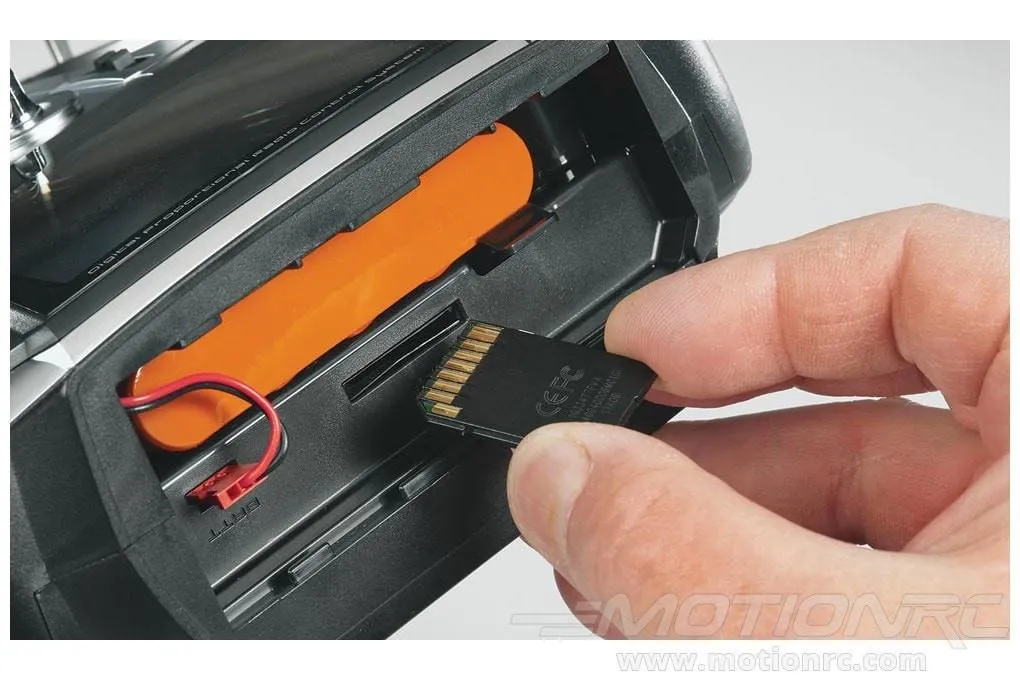

• SD Card compatibility for external model memory and software updates (SD: 32MB-2GB; SDHC 4GB-32GB)
• Left and right assignable slider switches
• Two assignable rotary knobs

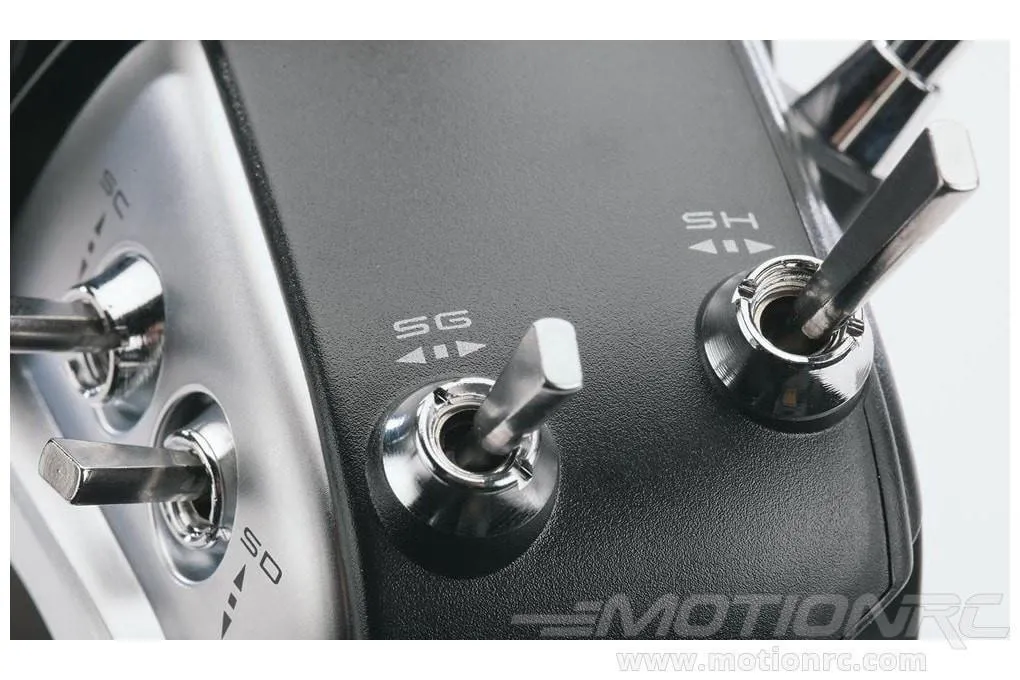

• Six assignable three-position switches
• One assignable momentary two-position switch
• One assignable two-position switch
• Comfortable rubber grips on the sides and back
• Wide top switch spacing
• Adjustable stick tension
• Dual ball bearing gimbals
• 4 vibration warning types

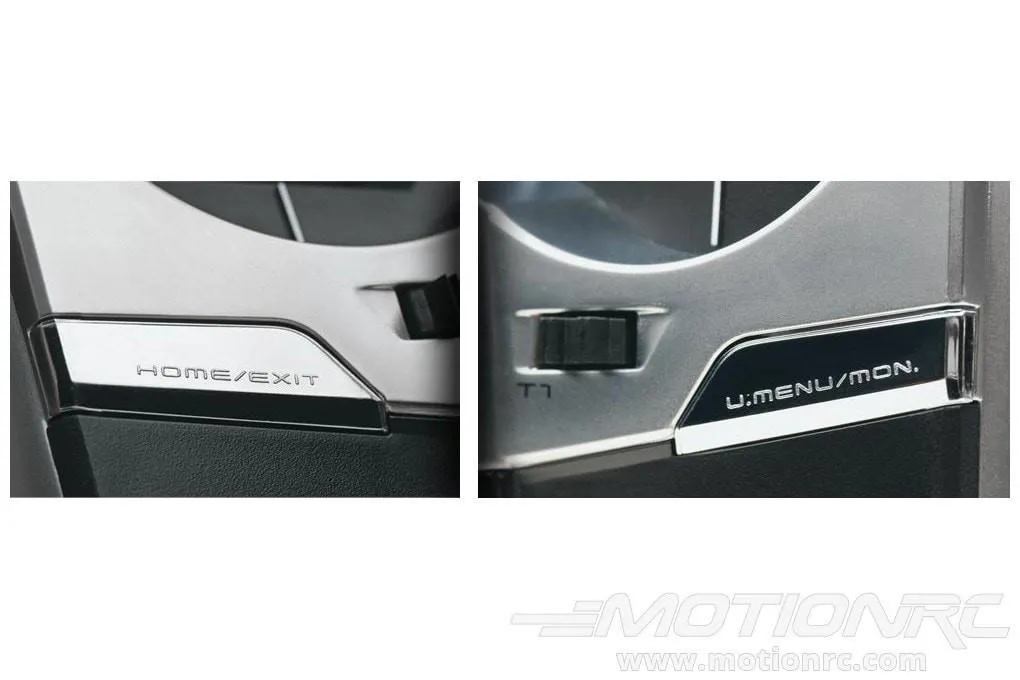

• Home/Exit; User Menu/Servo Monitor buttons
• Audio earphone jack (for telemetry alarms)
• 6V 1800mAh NiMH battery pack
• User stick calibration

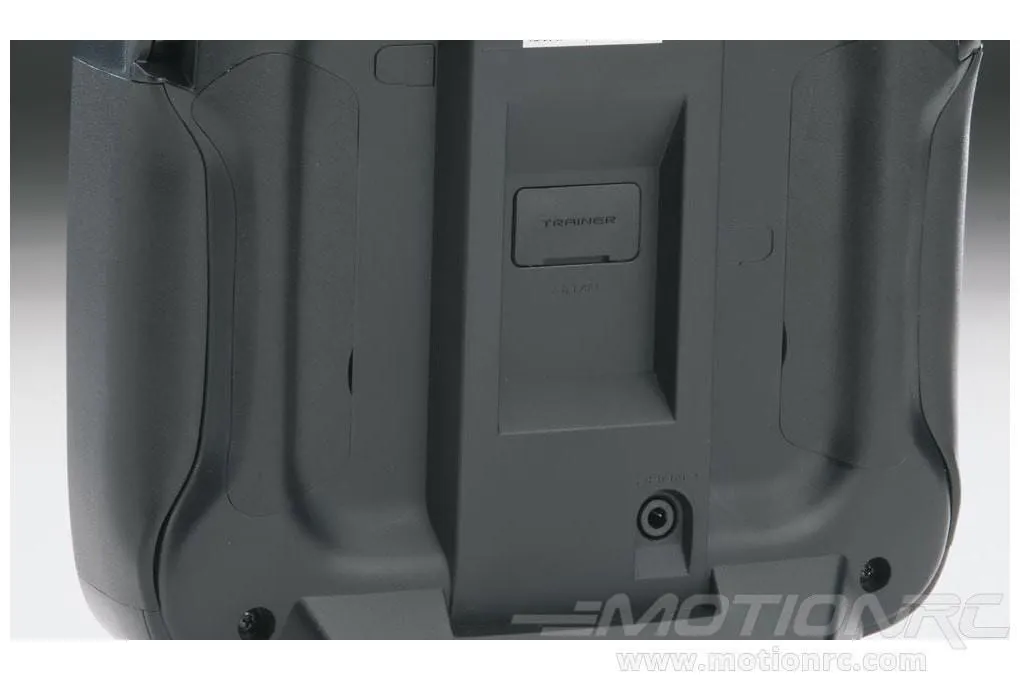

• Trainer system

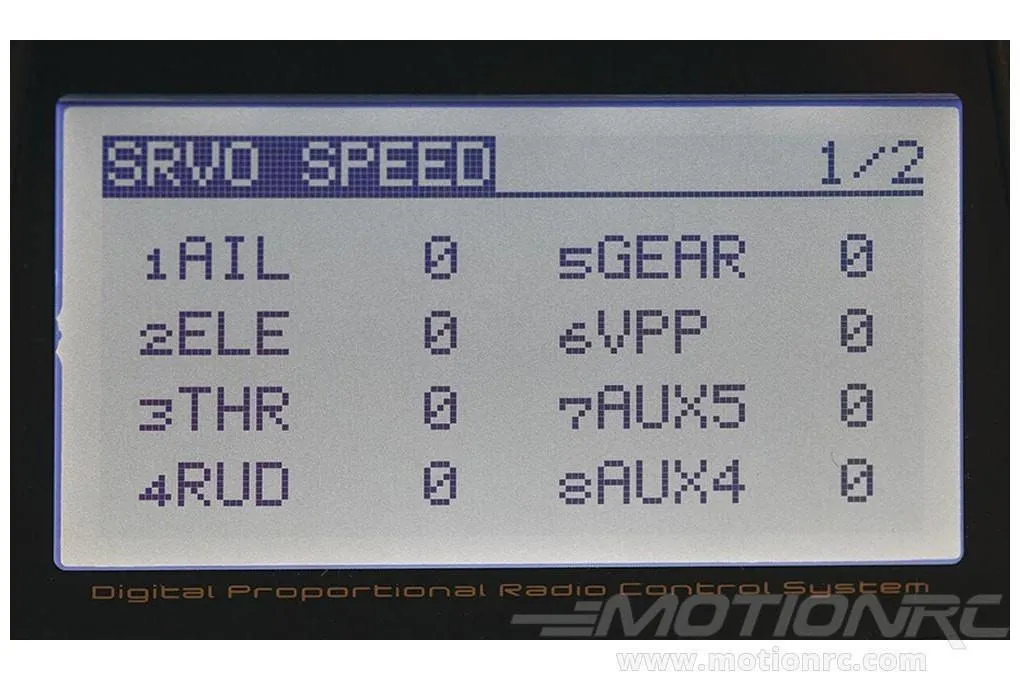

• Servo speed adjust
• 5 programmable mixes
• V-tail, Ailvator, winglet, motor mixing
• Trim mix
• Logic switch (condition switch only)
• Internal programmer for S.Bus servos
• User menu
• Servo monitor (neutral and moving tests)
• 2 count up/countdown timers
• Integral timer
• Model timer
• Quick model select

Airplane Features:

• 7 different wing types
• 3 different tail types
• 2 different rudder types
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Snap roll mixing
• Airbrake mixing
• V-Tail mixing
• Ailvator
• Winglet
• Motor mixing
• Fuel mixture mixing
• Gyro mixing
• Throttle curve (5-point)
• Pitch curve (5-point)
• Idle down

Glider Features:

• 11 different wing types
• 3 different tail types
• 2 different rudder types
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Butterfly mixing
• Butterfly to elevator mixing

Advanced HELI Programming:

• 6 swash plate types
• Pitch/throttle curves (5-point)
• Throttle hold
• Swash mix
• Throttle mix
• Pitch to rudder mixing
• Fuel mixture
• Gyro (Flybarless support)
• Governor (700-3500 rpm)
• Hover pitch
• Hover throttle
• High/low pitch
• Swash AFR
• Swash setting (mixing rate, linkage compensation, speed compensation)
• Swash ring (electronic)
• Throttle cut

Includes:

• Futaba 14SGA (Air) radio
• R7008SB 8 channel Receiver
• 1800mAh NiMH Transmitter Battery and charger

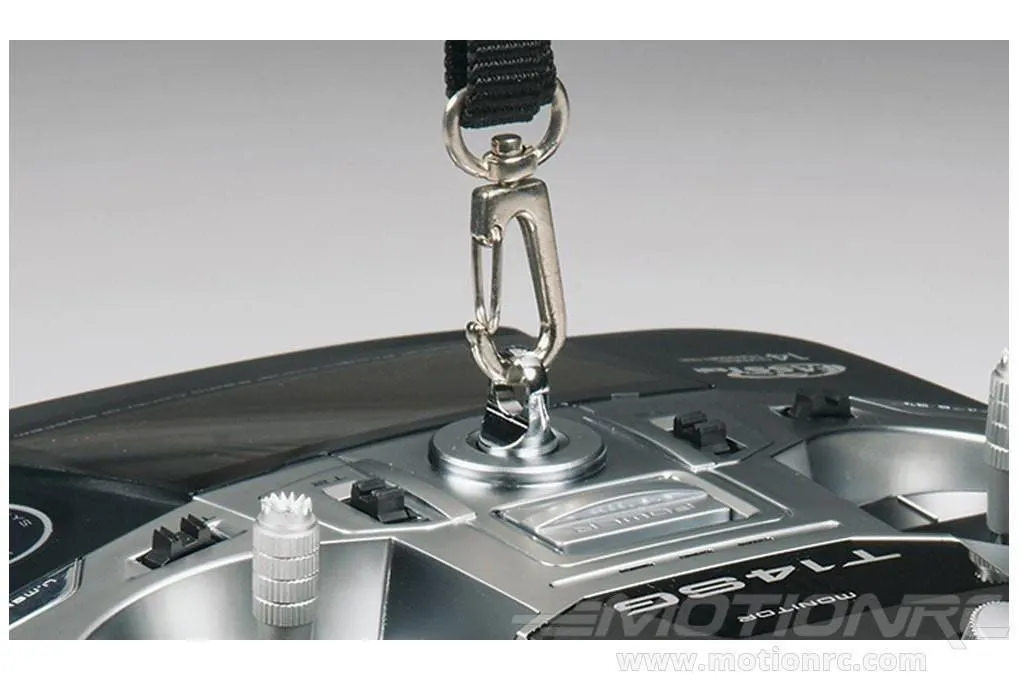

• Neck strap
• Instruction Manual
