Futaba T6K V3 8 Channel 2.4GHz T-FHSS (Dry) & R3008SB Receiver Combo (Mode 2)

P-CB6K3/L

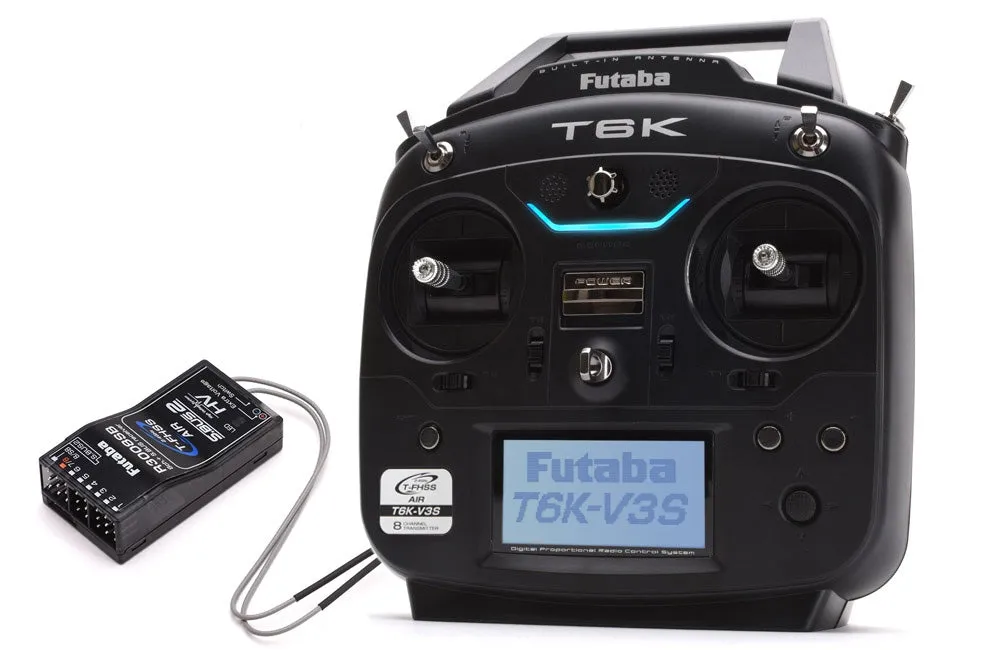

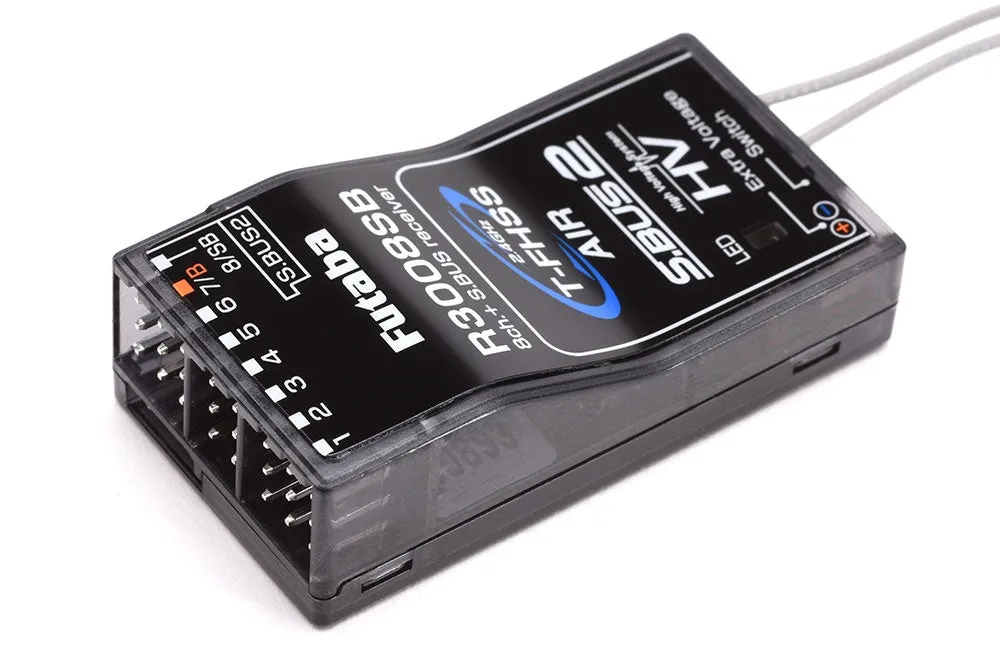

With the latest V3.0 software update the T6K is capable of operating up to 8 channels and now comes complete with the R3008SB receiver.

What else is new in the V3S version?

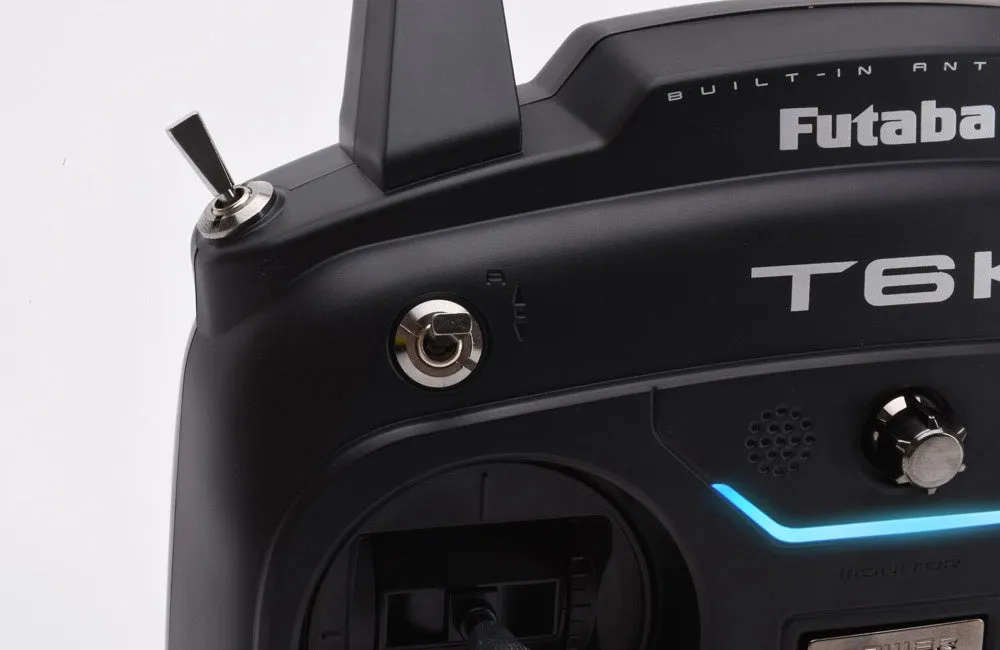

The T6K-V3S has an additional aileron mix for glider models without motor, acting on channels 1 and 3. For gliders, a total of 4 flight conditions can now be programmed. The trim mixer now also includes the rudder. Two independent stopwatches / timers are now available. The top right toggle switch is now a 3 position switch and in the Helicopter Menu, many governor functions can be adjusted directly from the transmitter.

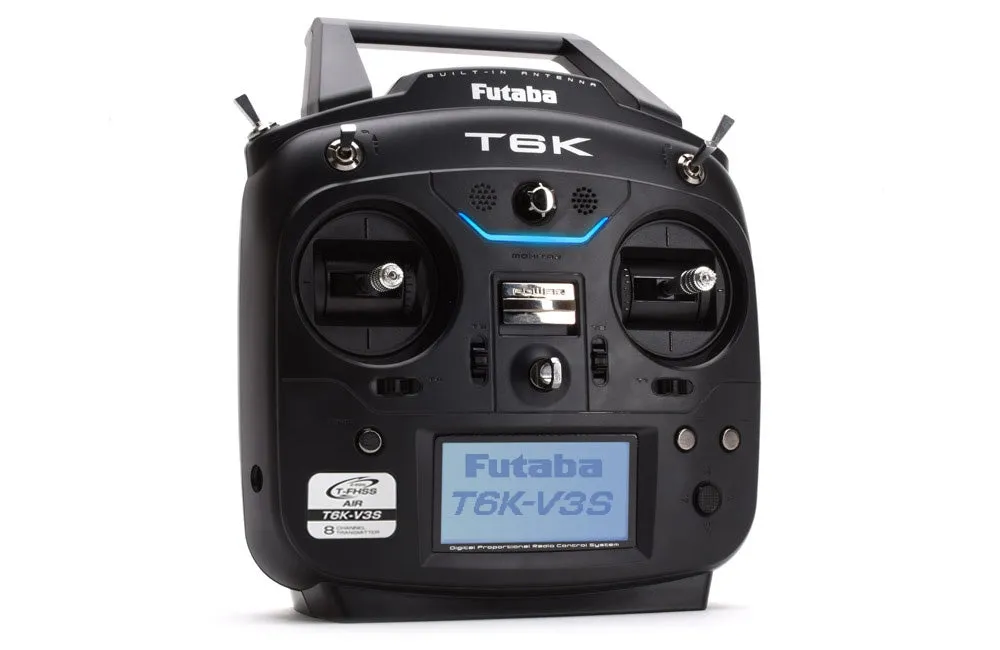

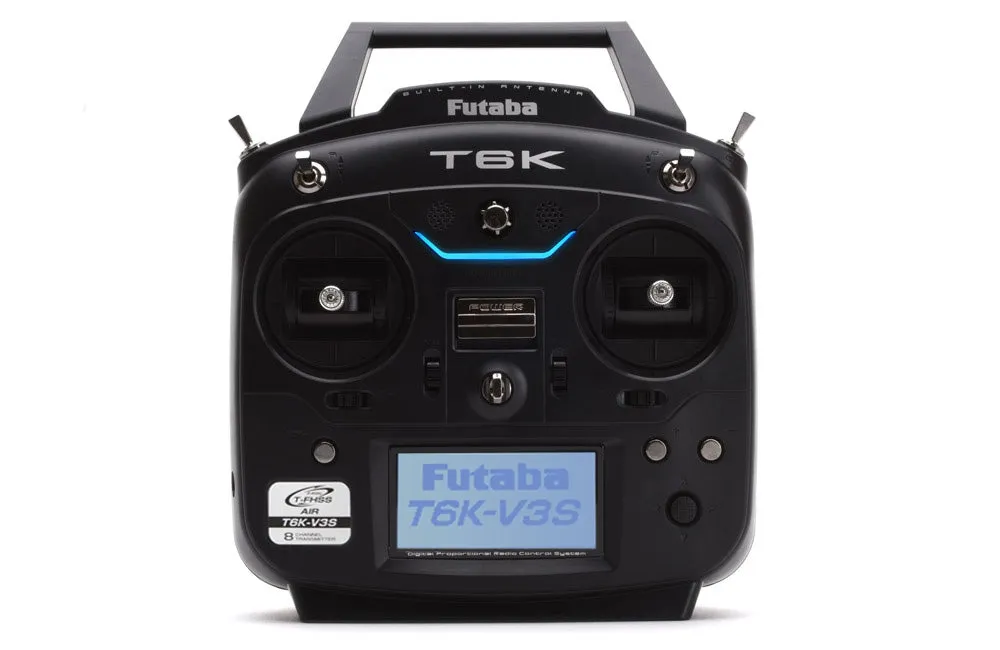

The Futaba T6K is the perfect entry/sport level radio for aircraft and helicopter pilots. This stylish, stealth looking transmitter features a clean in-built aerial, easy jog dial programming and a backlit LCD screen for ease of use, however the T6K is not only about style, it also includes many features you would normally expect in high-end transmitters.

Designed to take full advantage of Futaba's popular T-FHSS telemetry system so a wide array of data can be monitored in flight (on screen or using the in-built speaker) including as standard receiver battery voltage and external battery voltage, whilst temperature, RPM, altitude and even a variometer sensors are available as options . The T6K is also capable of using S.Bus/S.Bus2 servos which can be easily programmed via the transmitter, whilst these and standard servos can all be used with the supplied R3008SB receiver.

Features:

• S-FHSS/T-FHSS selectable
• Telemetry system (T-FHSS) with data speech function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer

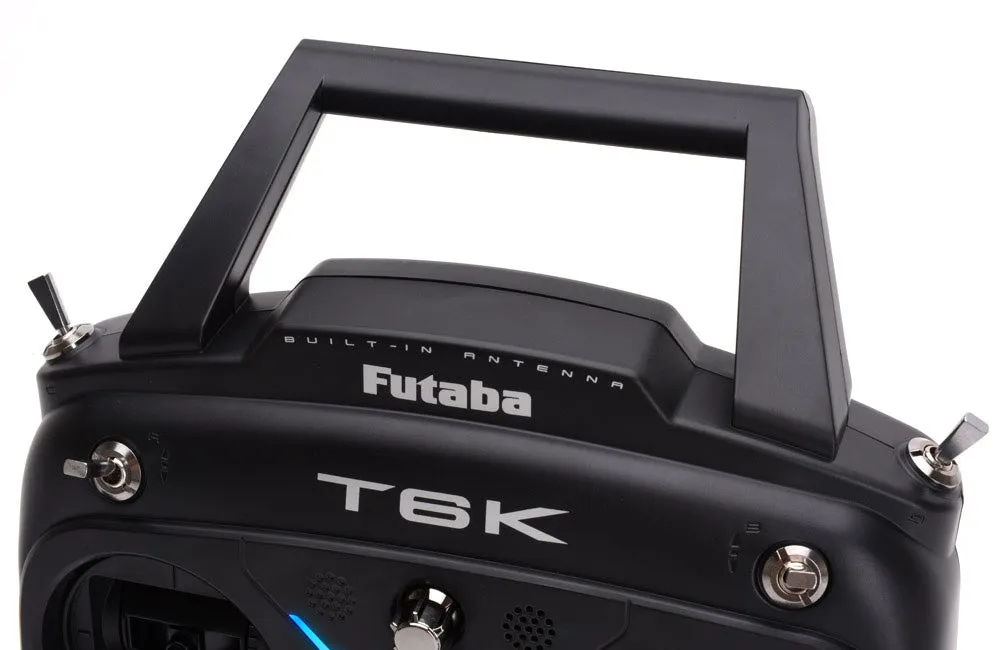

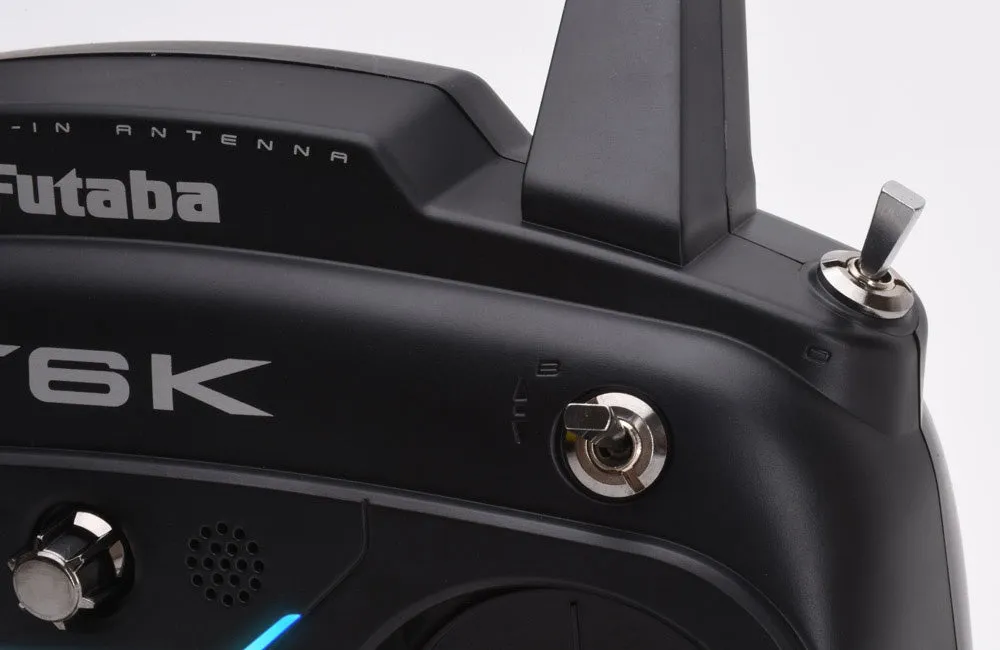

• Built-in antenna
• S.Bus/S.Bus2 servo setting functions programmable through the transmitter
• Preset vibration alarms
• 30 model memory
• 8-character model/user naming
• Programmable mixes for airplanes, helicopters, gliders and multi-rotors
• Digital trims with variable step settings
• Adjustable stick length and tension
• Changeable switch/VR position and AUX channel function
• Throttle position warning

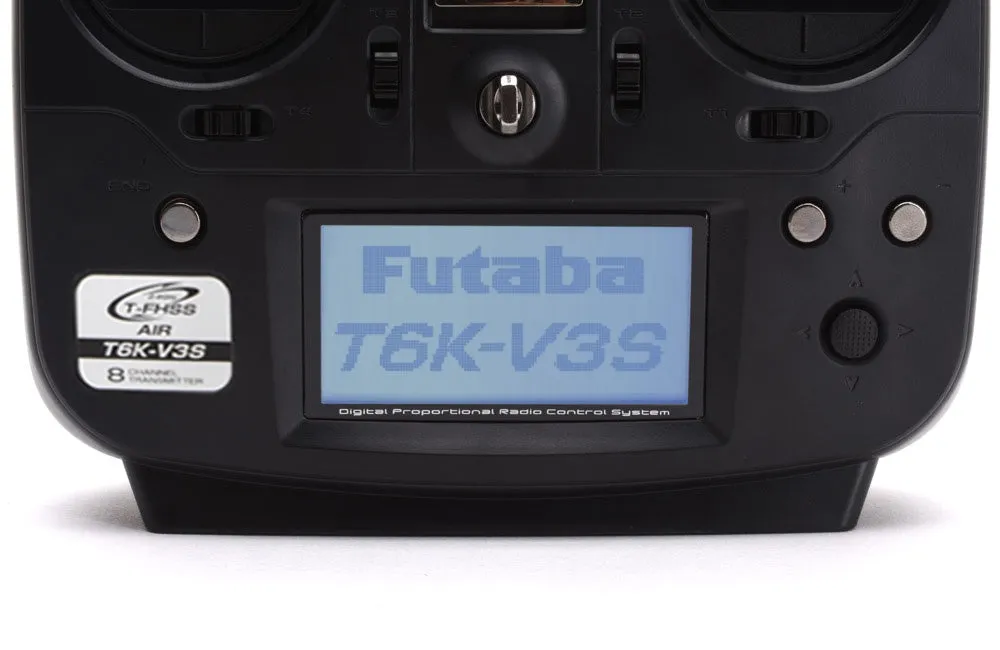

• Backlit 128x64 DOT LCD screen with adjustable display contrast
• Software updateable through the CIU-2
• Screen Lock

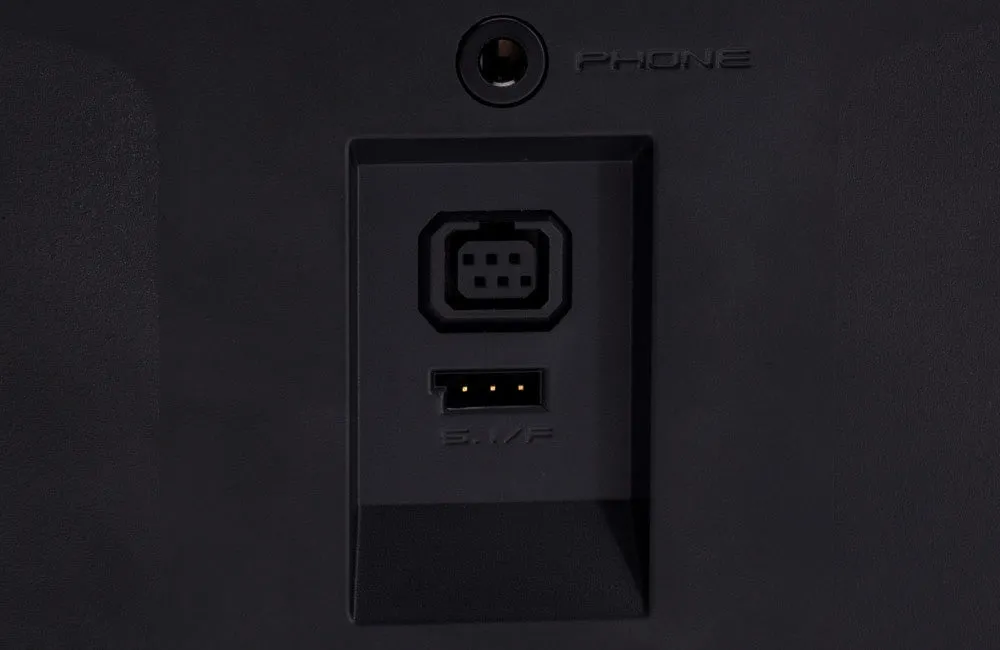

• Earphone/S.Bus/Trainer jacks
• Assignable switches (three 3-position, one 2-position)
• Range Check

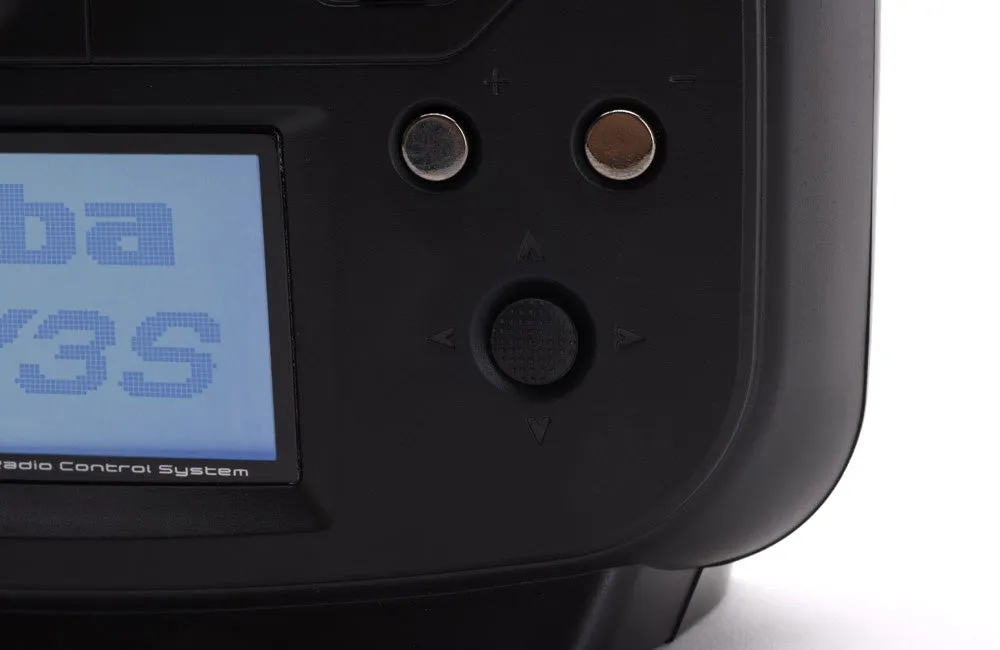

• Program navigation bay with jog dial, /- pads and end pad
• Data reset
• Model copy
• Selectable model type
• Fail Safe
• End Points
• Trim/Trim Resets/Trim Steps
• Sub Trim
• Servo Reversing
• Parameter functions
• Servo monitor/Test
• Wireless model data transfer
• Timer-System and Model (Up/Down)
• Trainer system

Airplane Functions:
Wing Type (5-wing, 2-tail)
Throttle Cut
Dual Rate/Expo
Throttle Curve
Idle down
Gyro
Aileron differential
V-Tail
Camber
Air Brake
Elevator-to-Flap mixing
Flap-to-Elevator mixing
Elevon mixing

Glider Functions:
Wing Type (5-Wing, 2-Tail)
Condition select
Dual Rate/Expo
Motor switch
Gyro
Aileron Differential
V-tail
Butterfly mixing
Trim mixing
Elevator-to-Camber mixing
Camber mixing
Aileron-to-Camber mixing

Helicopter Functions:
Swash type (6)
Condition Select
Throttle Cut
Dual Rate/Expo
Trim Offset
Delay
Gyro mixing
Swash AFR
Swash mixing
Throttle Curve (5-point)
Pitch Curve (5-point)
Pitch-to-Rudder mixing
Throttle Hold
Hovering throttle
Hovering pitch

Multicopter Functions:
Flight Mode
Center alarm
Dual Rate/Expo
Throttle Curve
Throttle Delay
Gyro

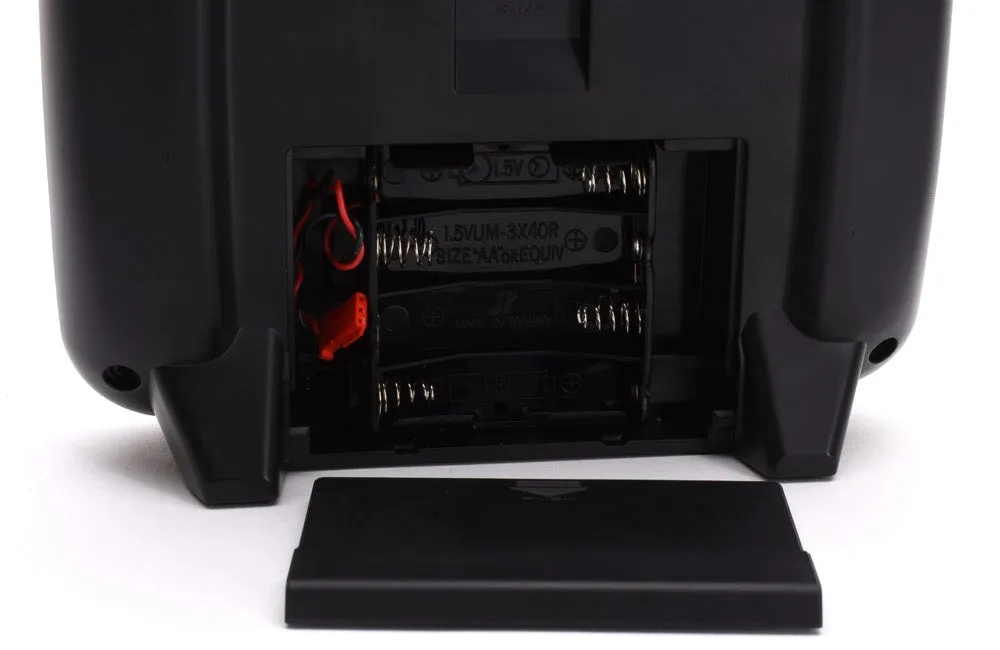

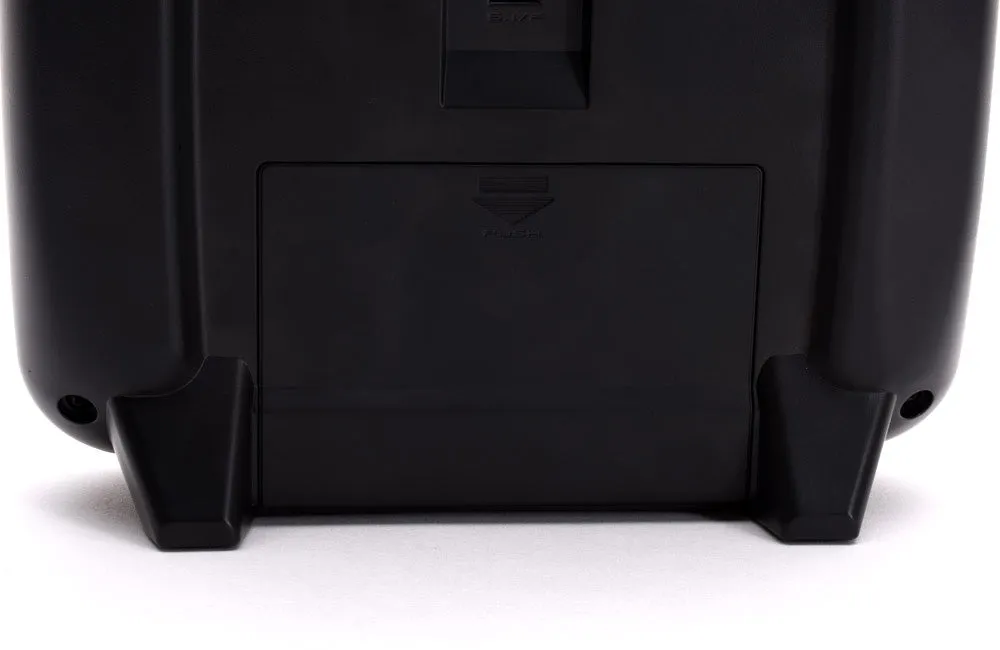

Required for use: 4x 'AA' batteries for transmitter & suitable Rx battery

Specifications:
Audio jack: Yes
Model memory: 30
Navigation type: Jog dial
Dials: 1
Modulation: Futaba 2.4GHz (T-FHSS, S-FHSS)
