Overview
Key Features
- Standard size servo for 500 size Helicopter models and smaller
- 160oz Torque and .103 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
Overview

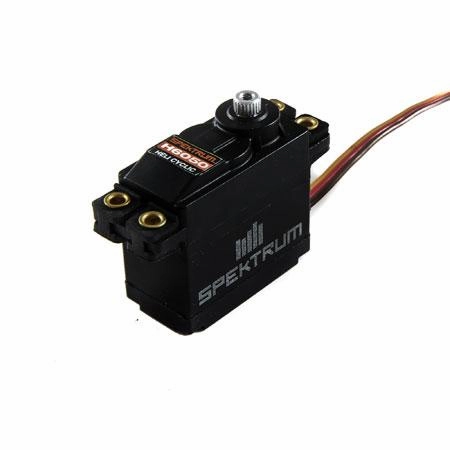

The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Specifications
Application
- Heli Cyclic
- Bearing
- Dual
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Connector Wire Length
- 10 in (255mm)
- Deadband
- Less than 1?s
- Gear Material
- Alloy Metal
- Gear Type
- Metal
- Maximum Servo Speed
- 0.100-0.149 sec
- Maximum Servo Torque
- 100-199 oz-in
- Motor Type
- Coreless
- Product Height
- 1.51 in (38.3 mm)
- Product Length
- 1.57 in (40.0 mm)
- Product Weight
- 2.2 oz (62g)
- Product Width
- 0.79 in (20.0 mm)
- Programmable
- No
- Rotation Range
- 120 deg
- Servo Operating Voltage
- 4.8 - 6.0V
- Servo Size Category
- Standard
- Servo Type
- Digital
- Speed
- 0.103 sec/60 deg @ 6.0V at no load
- Spline Count
- 23 Teeth
- Torque
- 160 oz-in (11.5 kg-cm) @ 6.0V
- Wire Gauge
- 22 AWG
