Overview
Key Features
- Standard size servo for 500 size Helicopter models and smaller
- 160oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
Overview

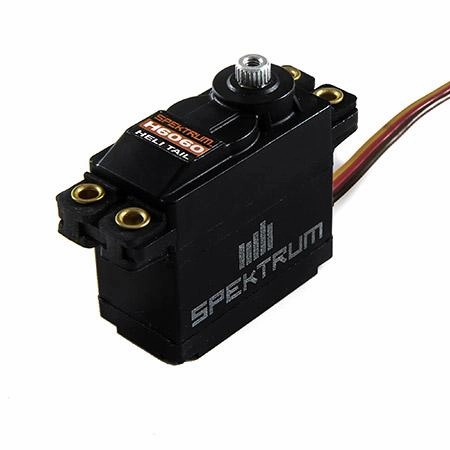

The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Specifications
- Application
- Helis Tail
- Bearing
- Dual
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Connector Wire Length
- 10 in (255mm)
- Gear Type
- Metal
- Material
- Plastic
- Max Servo Torque
- 40-99 oz-in
- Maximum Servo Speed
- 0.050-0.099 sec
- Maximum Servo Torque
- 86 oz-in (6.2 kg-cm) @ 6.0V
- Product Application
- Heli Tail
- Product Height
- 1.57 in (39.9 mm)
- Product Length
- 1.57 in (39.9 mm)
- Product Weight
- 2.2 oz (62g)
- Product Width
- 0.78 in (19.8 mm)
- Programmable
- No
- Rotation Range
- 120 deg
- Servo Operating Voltage
- 4.8 - 6.0V
- Servo Size Category
- Standard
- Servo Type
- Digital
- Wire Gauge
- 22 AWG
