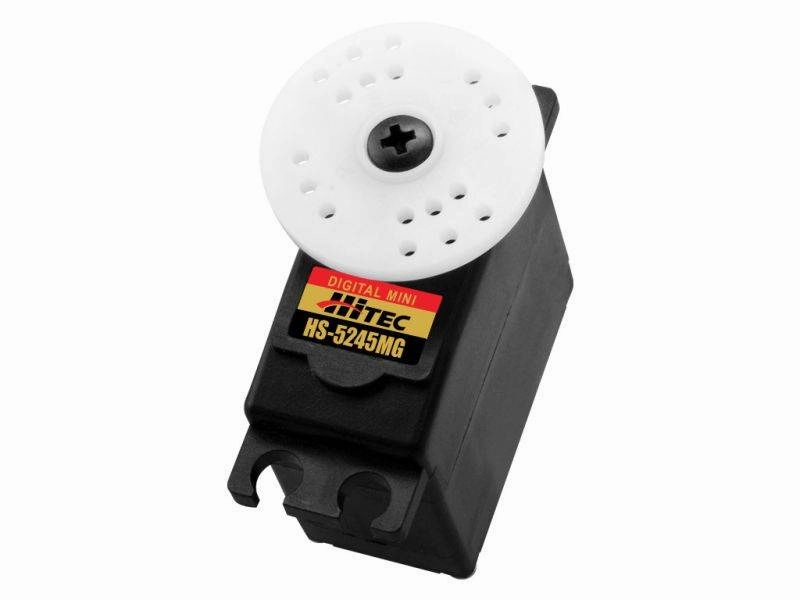

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features:

• High Speed and High Torque in a Mini Package
• Durable Metal Gears
• Dual Ball Bearings
• Standard Programmable Digital Circuit for Greater Holding Power
• Fast, High Torque

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Specifications:

• Performance Specifications:
• Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
• Speed (Second @ 60°): 0.15 ~ 0.12
• Maximum Torque Range oz. / in.: 61 ~ 76
• Maximum Torque Range kg. / cm.: 4.4 ~ 5.5
• Current Draw at Idle: 3 mA
• No Load Operating Current Draw: 300 mA
• Stall Current Draw: 1,200 mA
• Dead Band Width: 4 µs
• Physical Specifications:

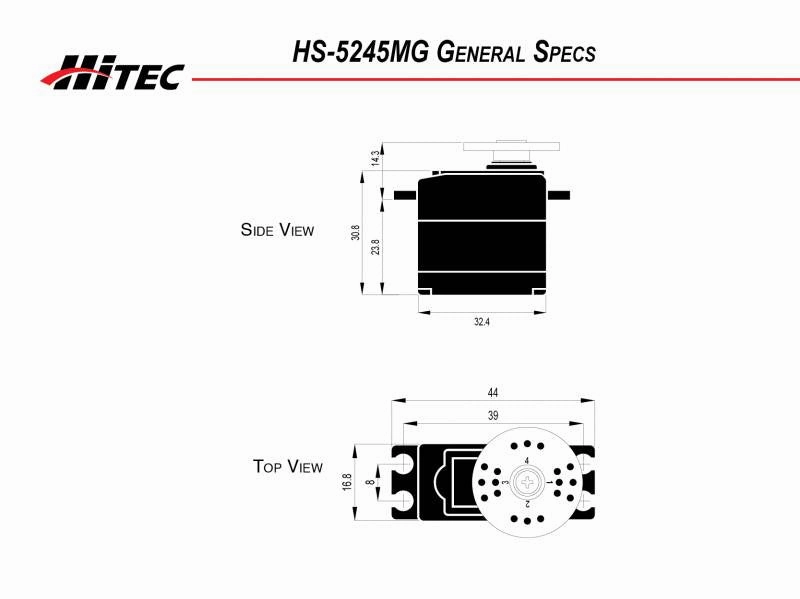

• Dimensions (Inches): 1.27 x 0.66 x 1.21
• Dimensions (Metric): 32.4 x 16.8 x 30.8

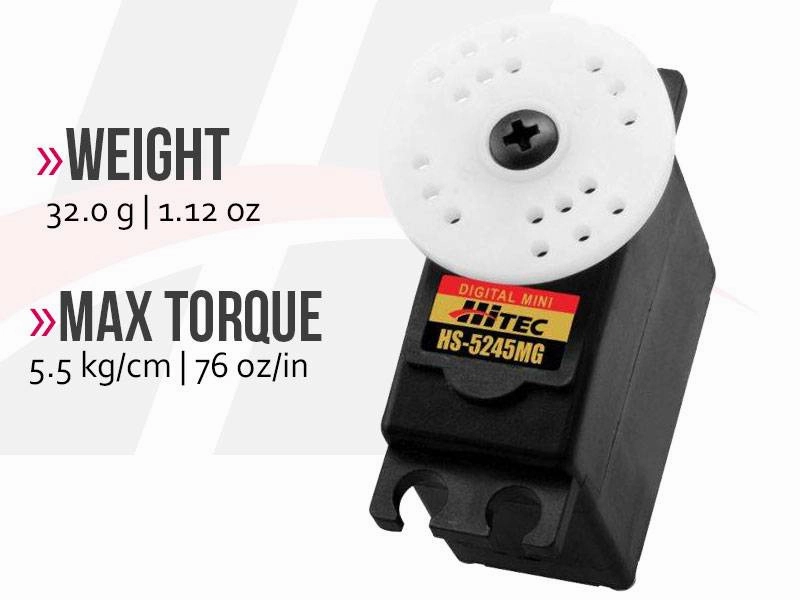

• Weight (Ounces): 1.12
• Weight (Gram): 32.0
• Circuit Type: G1 Programable Digital
• Motor Type: 3 Pole Metal Brush Ferrite
• Gear Material: Metal
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): Standard 24
• Case Material: Plastic
• Connector Gauge (AWG) / Strand Count: 25 / 40
• Radio Control Applications:
• Sport Plane: 50 - 64 oz.
• Sailplane: 3 meter
• 3D Performance: 50 - 64 oz.
• Electric Helicopter: 500mm
• Gas Helicopter: 50 - 59 Class
• On Road: 1/12th
• Crawlers: 1/18th
• Sail Boat: < 1 meter
• Power Boat: 1/16th
