For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique M/P and metal gear train technology, the HS-5645MG will deliver powerful high speed results!
Note: Metal Horn (R-ML) Included
Features
- Most Popular High Speed Standard Digital Servo
- Strong Three-Pole Ferrite Motor
- Metal Gear Train with MP Gear Technology
- Dual Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit Provides Fine Resolution and Centering
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Accessories
- Metal Gear Set
- Metal / Karbonite 1st Gear Set
- Plastic Case Set
- Applicable Horns

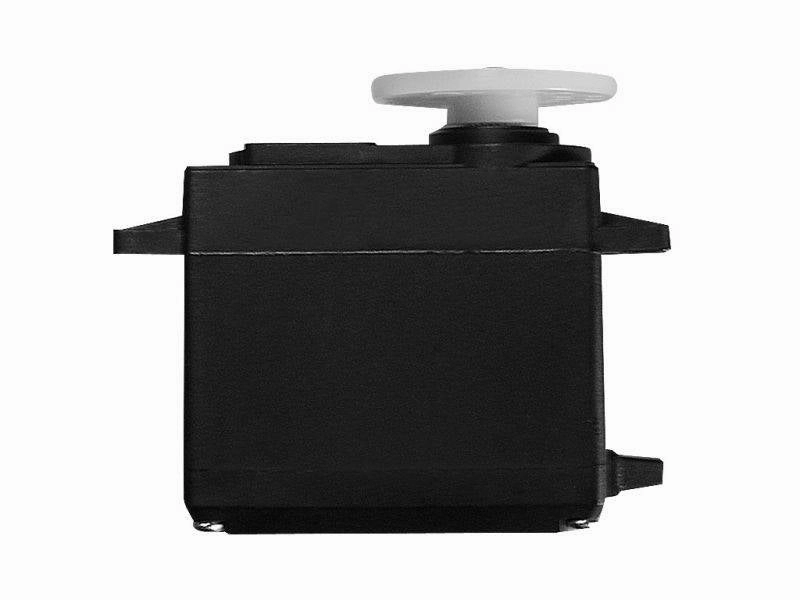

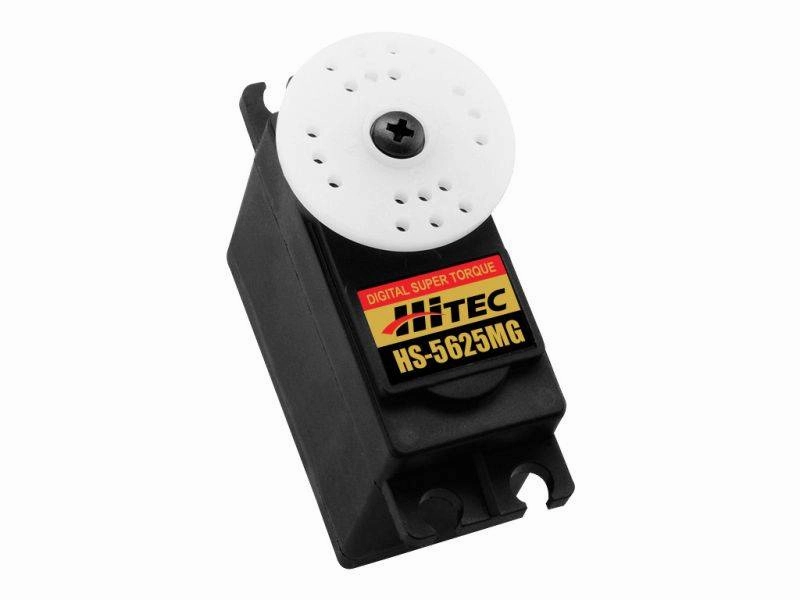

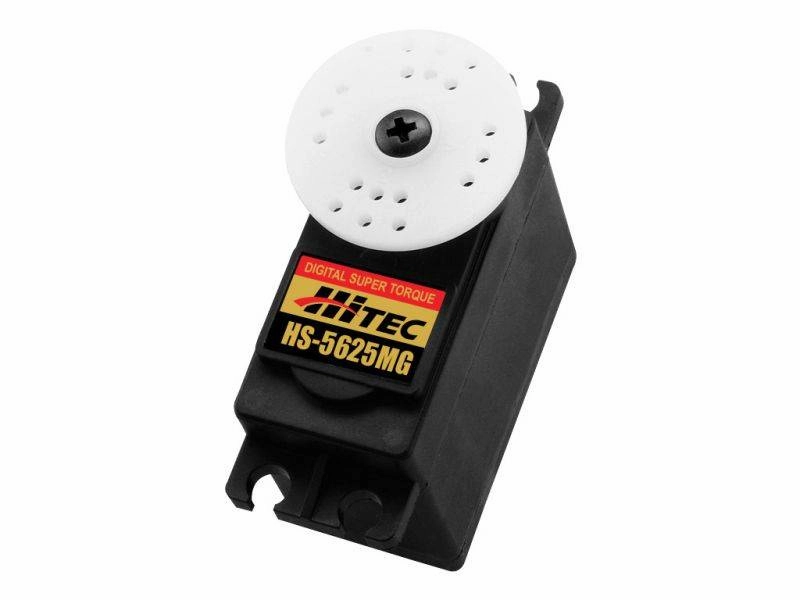

HS-5625MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.17 ~ 0.14 |
| Maximum Torque Range oz. / in. | 110 ~ 131 |
| Maximum Torque Range kg. / cm. | 7.9 ~ 9.4 |
| Current Draw at Idle | 3 mA |
| No Load Operating Current Draw | 500 mA |
| Stall Current Draw | 2,400 mA |
| Dead Band Width | 4 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.59 x 0.77 x 1.48 |
| Dimensions (Metric) | 40.6 x 19.8 x 37.8 |
| Weight (Ounces) | 2.11 |
| Weight (Gram) | 60.0 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 4 - 12 lbs. |
| Sailplane | 2 meter and up |
| 3D Performance | 4 - 12 lbs. |
| Scale | 4 - 12 lbs. |
| Electric Helicopter | 600mm |
| Gas Helicopter | 50-59 Class |
| On Road | 1/10th |
| Monster Truck | 1/10th |
| Buggies | 1/10th |
| Truggies | 1/10th |
| Short Course / Truck | 1/10th |
| Crawlers | N / A |
| Sail Boat | = >1 meter & Scale |
| Power Boat | 1/10th |
