When it comes to your big RC projects, size does matter - that’s why Hitec engineered the HS-5765MH. This high voltage cousin of our popular HS-5755MG is 2-cell LiPo (7.4V) capable and features heavy duty, metal gears with a 10mm output shaft for the strength you need for the most demanding large scale applications. With 347 oz-in torque, our giant HS-5765MH is tough enough to tackle your biggest RC projects from 1/5thon and off-road vehicles to large high-powered boats and giant scale aircraft!
Features:
- Large 10mm Output shaft
- Triple Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
HS-5765MH Servo Specifications:
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.16 ~ 0.13 |
| Maximum Torque Range oz. / in. | 278 ~ 347 |
| Maximum Torque Range kg. / cm. | 20.0 ~ 25.0 |
| Current Draw at Idle | 3 mA |
| No Load Operating Current Draw | 1,100 mA |
| Stall Current Draw | 5,800 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |

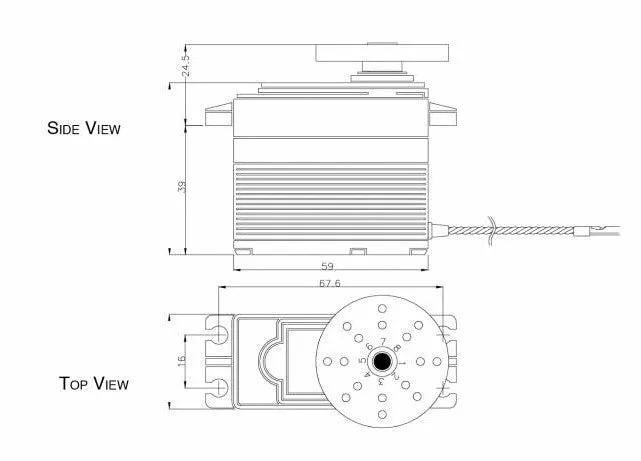

| Dimensions (Inches) | 2.32 x 1.14 x 2.04 |
| Dimensions (Metric) | 59.0 x 29.0 x 52.0 |
| Weight (Ounces) | 6.07 |
| Weight (Gram) | 172.3 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Triple Ball Bearing |
| Output Shaft (type / Ømm) | Mega 15 |
| Case Material | Plastic / Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | N / A |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | > 40% |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/4th & 1/5th |
| Monster Truck | 1/4th & 1/5th |
| Buggies | 1/4th & 1/5th |
| Truggies | 1/4th & 1/5th |
| Short Course / Truck | 1/4th & 1/5th |
| Crawlers | N / A |
| Sail Boat | = >1M & Scale |
| Power Boat | 1/5th & Up Scale |
