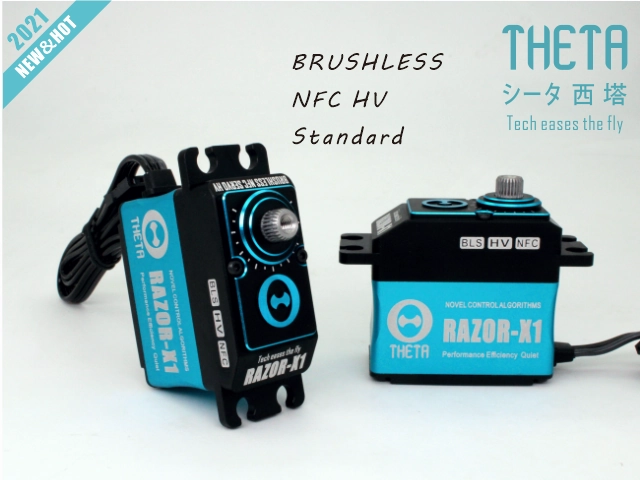

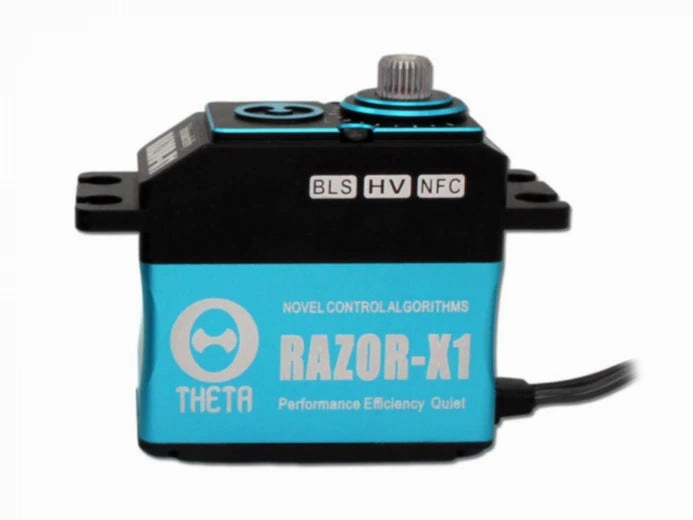

Theta RAZOR-X1 100cc High Voltage Servo TS-RX1
High voltage, High-Torque, standard size brushless servo
3D Aerobatic Airplanes and Turbojet Aircraft
NFC programmable brushless HV servo in the 40 mm standard size.
The application range of the servo is versatile from helicopter swashplate servo in large models, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.
Specifications:
| Motor | Brushless |
| Operating Voltage | 5V bis 8,4V |
| Speed at 5V | 0,160 (sec/60°) |
| Speed at 6V | 0,140 (sec/60°) |
| Speed at 7,4V | 0,130 (sec/60°) |
| Speed at 8,4V | 0,120 (sec/60°) |
| Torque at 5V | 37 (kg/cm) |
| Torque at 6V | 42 (kg/cm) |
| Torque at 7,4V | 47 (kg/cm) |
| Torque at 8,4V | 52 (kg/cm) |
| Weight | 85g |

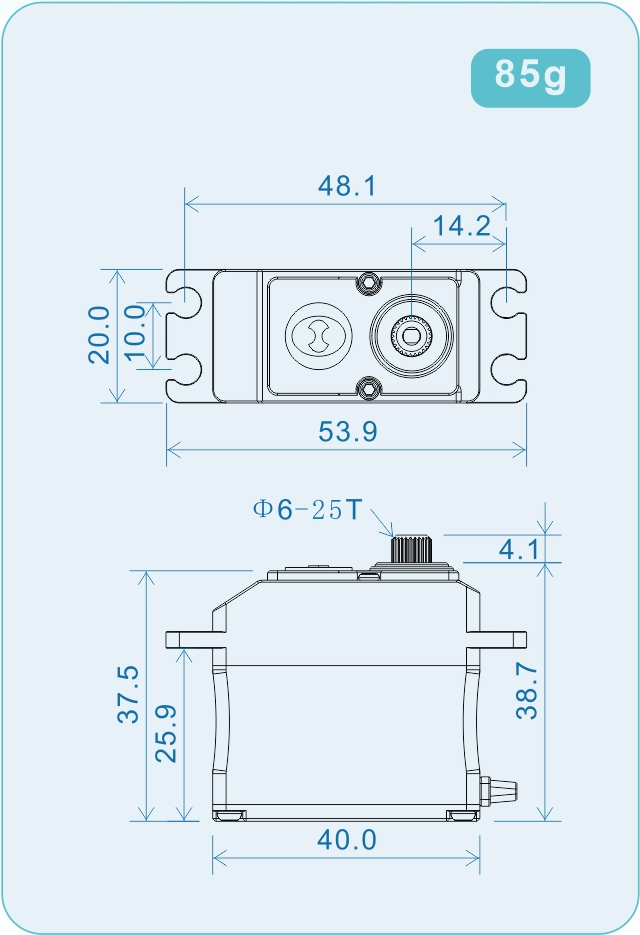

| Dimensions (mm) | 40x20x38mm |
| Neutral pulse (factory-made) | 1520µs |
| Working Frequency | 333Hz |
| Output toothing | 25T Ø 5,9mm (Nexspor, Futaba Align, BK, Savöx usw.) |
