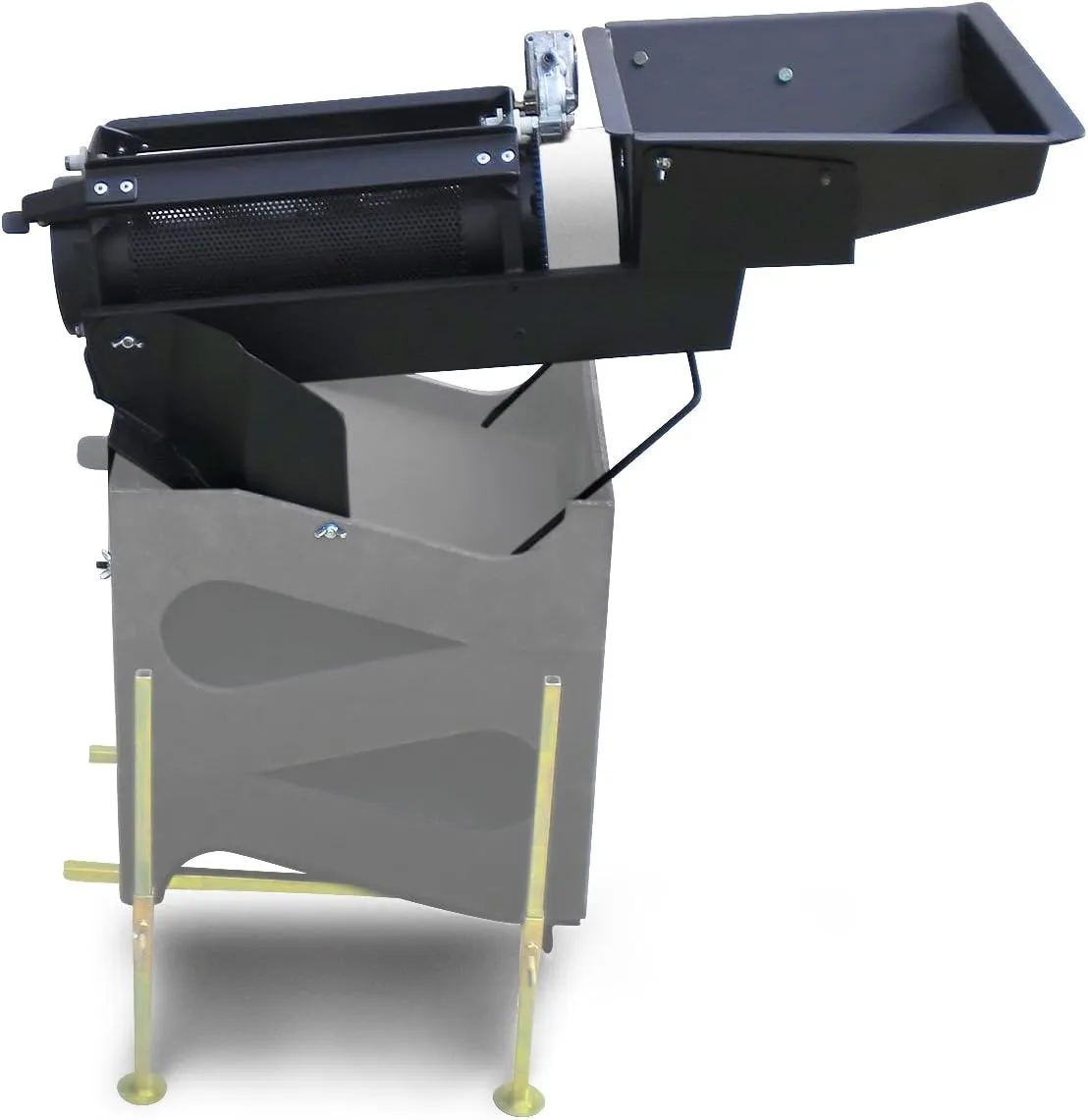

This is the new and improved Gold Cube Trommel! Now the spray bar is on the outside of the barrel, allowing more area inside the barrel. If you already own a Gold Cube, you will want this trommel kit for the top of it! Put this mini 5 inch trommel on the top of the Gold Cube you already own to spin your material and wash completely with no classifying. This kit is self jigging to the Gold Cube. It consist of a 12 volt 5 inch diameter trommel top unit with a 16'' long barrel and a 3/16'' classifying screen. You also get an adapter plate to attach the trommel to the Gold Cube and an angle adjustment bar for adjustable pitch. Comes with bolts. The Trommel can also be taken off when you need to use the Gold Cube as is or with a Gold Banker. This unit uses the 12 volt -1100 GPH pump and 1 1/8'' hose that comes with the Gold Cube you already own.

The hopper and barrel both have a sprayer so cleaning your material is automatic as well as also providing the proper amount of water to the Gold Cube. Spray bar on the outside where it will keep the little rocks out of the holes. You can pivot the spray bar assembly to make it easier to clear plugged holes. There is chute at the drum exit.

Benefits include: simple installation, all parts powder coated, gear to gear drive, 12 volt drive motor, high quality water jet cut parts, standard color flat black, made in the USA.

Speed up your production and run more dirt! 16 inch long barrel x 5 inch diameter, classifying to 3/16 inch. Tested and approved by the inventor of the Gold Cube! GOLD CUBE NOT INCLUDED. Gold Cube Trommel ships in a 14 x 14 x 37 inch box weighing 22 pounds. Gold Cube needs to be purchased separately, it does not come with the Gold Cube Trommel.
